The Barton 90402 is a medium snatch block with stainless steel D shackle and 48 mm sheave, designed for ropes up to 16 mm. Featuring an easy-open side plate and robust 316 stainless steel fittings, it allows quick line insertion without reeving. With a working load of 650 kg and break load of 1300 kg, it is ideal for higher-load sheet deflection and temporary lead changes.
- Description
- Ask a Question
-

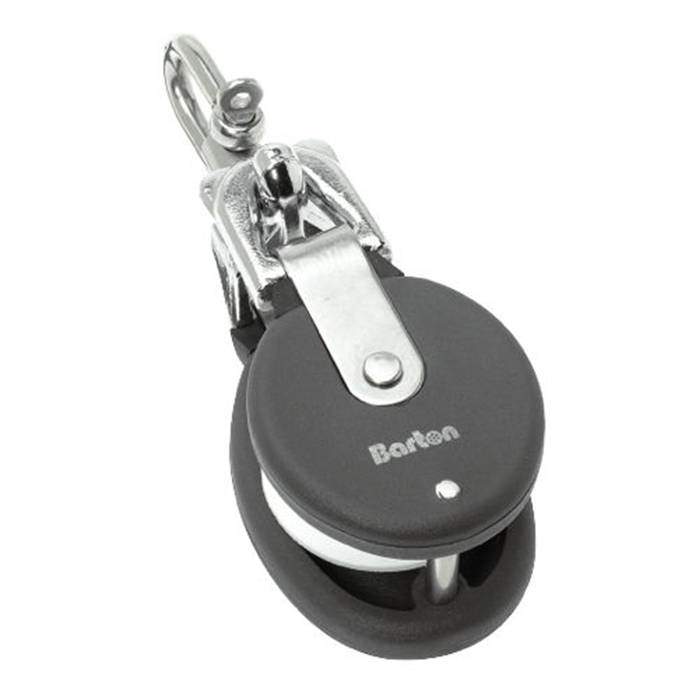

Barton 90402 – Snatch Block with Stainless Steel D Shackle 48mm, Plain Bearing, Ø48mm Sheave, Max Rope 16mm
The Barton 90402 Snatch Block is a compact and heavy-duty single sheave block with stainless steel D shackle, designed for secure and strong attachment in demanding rigging setups. Its opening side plate allows rope insertion without reeving, making it ideal for temporary or adjustable systems.
Constructed from 316 stainless steel components and glass fibre reinforced nylon side plates, this block delivers durability, corrosion resistance, and reliable performance. The D shackle attachment provides maximum strength and stability compared to snap shackle versions, making it suitable for higher load applications.
Key Features
- Snatch block with easy-open side plate for fast rope insertion
- Stainless steel D shackle for maximum strength and secure attachment
- Compact and robust construction
- 316 stainless steel fittings for corrosion resistance
- Glass fibre reinforced side plates for durability
- Plain bearing for reliable operation under load
Technical Specifications
Part Number 90402 Block Type Snatch Block with D Shackle Category Snatch Blocks Sheave Diameter 48 mm x 20 mm (1 7/8" x 3/4") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 16 mm (5/8") Safe Working Load (SWL) 650 kg (1433 lbs) Break Load 1300 kg (2866 lbs) Weight 298 g Dimensions 144 × 56 × 50 mm
Applications
- Temporary redirection of sheets and control lines
- Spinnaker and genoa sheet lead adjustment
- Higher-load rigging applications requiring secure attachment
- Marine and racing yacht setups
According to the Barton snatch block specification, these blocks allow quick placement anywhere on deck and instant rope insertion without reeving, making them highly effective for dynamic sailing conditions :contentReference[oaicite:0]{index=0}.
The Barton snatch blocks are engineered for strength, flexibility, and rapid deployment, delivering reliable performance in demanding sailing environments.
-
