ID
1360557
$ 27.02
1-2 weeks delivery time
-
+
The Barton 60452 is a high load low friction eye with a 16 mm bore, designed for ropes up to 10 mm. Manufactured from marine-grade aluminium with HV500 hard anodised finish, it delivers extremely low friction and outstanding strength-to-weight performance. With a working load of 1800 kg, it is ideal for high-load control systems and modern performance rigging.
- Description
- Ask a Question
-

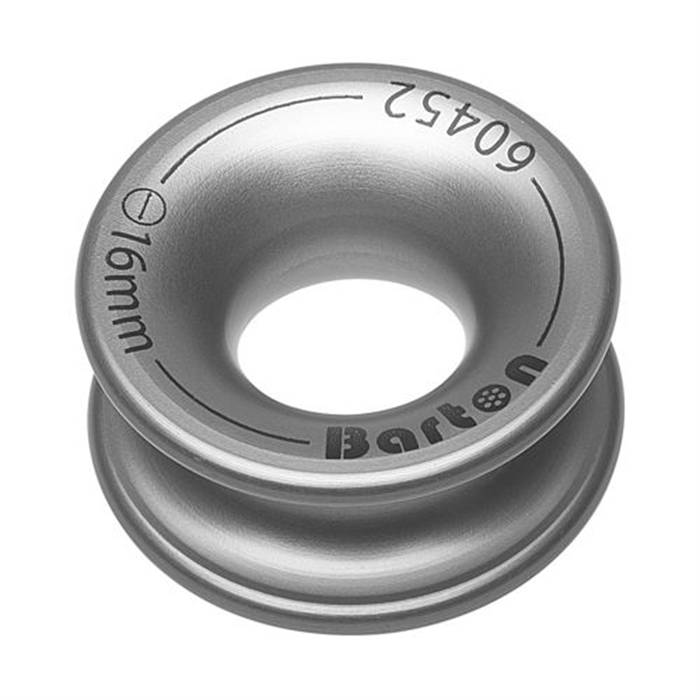

Barton 60452 – High Load Low Friction Eye 16mm, Hard Anodised Aluminium, Bore 16mm, Max Rope 10mm
The Barton 60452 High Load Eye is a robust and efficient low friction line guide designed for higher load rope applications. Featuring a 16 mm bore, it ensures smooth rope movement with minimal resistance and wear.
Manufactured from marine-grade aluminium with HV500 hard anodised finish, this eye offers exceptional durability, corrosion resistance, and extremely low friction characteristics. Its ergonomic design maximises strength while maintaining a lightweight profile, making it ideal for demanding rigging systems.
Key Features
- High load low friction eye for demanding applications
- HV500 hard anodised aluminium for superior wear resistance
- No moving parts – maintenance-free operation
- Optimised curved profile to minimise friction
- Excellent strength-to-weight ratio
Technical Specifications
Part Number 60452 Product Type High Load Low Friction Eye Bore Diameter 16 mm Internal Diameter 10 mm External Diameter 38 mm Max Rope Diameter 10 mm (25/64") Safe Working Load (SWL) 1800 kg (3968 lbs) Weight 21 g Dimensions 38 × 38 × 18 mm Material Hard anodised aluminium (HV500)
Applications
- High-load control lines and rigging systems
- Genoa barber haulers and tweakers
- Lazy jacks and mast base organisation
- Performance sailing and weight-sensitive setups
According to the Barton specification, this range delivers significantly increased strength with reduced weight compared to traditional blocks, while maintaining very low friction performance :contentReference[oaicite:0]{index=0}.
The Barton high load eyes are engineered for maximum efficiency, durability, and minimal friction, making them ideal for modern sailing applications.
-
