ID
1360610
$ 356.51
1-2 weeks delivery time
-
+
The Barton 82300 is a high load single block with an 85 mm sheave, designed for ropes up to 18 mm. Manufactured from marine-grade aluminium with grey anodised finish, it delivers exceptional strength, UV resistance, and durability. With a working load of 1500 kg and break load of 3000 kg, it is ideal for heavy-duty control systems and high-load sailing applications.
- Description
- Ask a Question
-

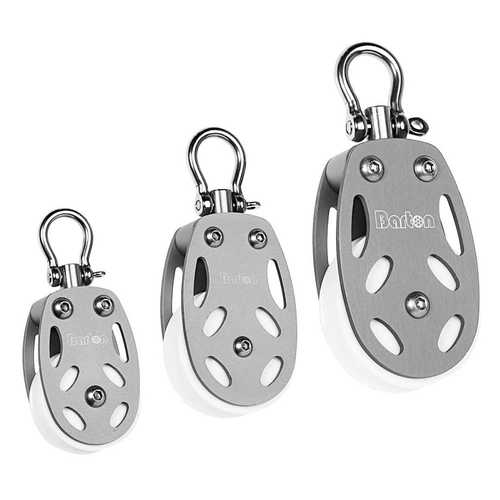

Barton 82300 – High Load Block 85mm, Plain Bearing, Ø85mm Sheave, Max Rope 18mm
The Barton 82300 High Load Block is a heavy-duty single sheave block engineered for demanding marine environments. Featuring a large 85 mm sheave precision-machined from solid Ertalyte, it ensures smooth operation while protecting modern high-performance ropes.
Constructed from marine-grade aluminium with grey anodised finish, this block provides excellent corrosion resistance and long-term durability under UV exposure. The block runs on a large diameter centre bearing, ensuring efficient load handling, while the stainless steel bow shackle allows secure and snag-free connection.
Key Features
- Heavy-duty single sheave block for high-load applications
- Precision-machined Ertalyte sheave for rope protection and smooth operation
- Marine-grade aluminium construction with anodised finish
- Large diameter centre bearing for efficient performance under load
- Stainless steel bow shackle for secure attachment
- Bolt-together construction for easy servicing and maintenance
- Compatible with Barton mainsheet traveller systems
Technical Specifications
Part Number 82300 Block Type High Load Block Category High Load & Foot Blocks Sheave Diameter 85 mm x 21 mm (3 3/8" x 13/16") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 18 mm (11/16") Safe Working Load (SWL) 1500 kg (3307 lbs) Break Load 3000 kg (6614 lbs) Weight 525 g Dimensions 180 × 85 × 39 mm
Applications
- Heavy-duty mainsheet and traveller systems
- High-load control and trimming systems
- Large yacht rigging applications
- Industrial load handling systems
The Barton high load blocks are engineered for maximum strength and efficiency, delivering smooth operation, durability, and reliable performance in demanding marine environments.
-
