ID
1360554
$ 21.01
1-2 weeks delivery time
-
+
The Barton 60449 is an ultra-compact high load low friction eye with a 6 mm bore, designed for ropes up to 3 mm. Manufactured from marine-grade aluminium with HV500 hard anodised finish, it provides extremely low friction and exceptional strength-to-weight performance. With a working load of 300 kg, it is ideal for lightweight control systems and precision rigging applications.
- Description
- Ask a Question
-

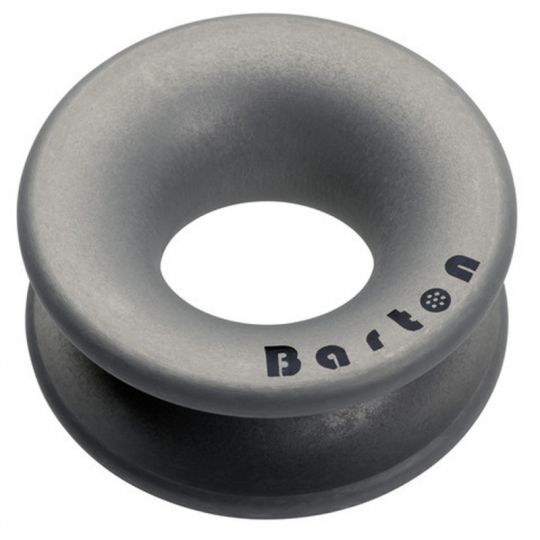

Barton 60449 – High Load Low Friction Eye 6mm, Hard Anodised Aluminium, Bore 6mm, Max Rope 3mm
The Barton 60449 High Load Eye is a compact and lightweight low friction line guide designed for small diameter rope applications. Featuring a 6 mm bore, it provides smooth rope movement with minimal friction and wear.
Manufactured from marine-grade aluminium with HV500 hard anodised finish, this eye delivers outstanding durability, corrosion resistance, and extremely low friction properties. Its ergonomic shape maximises strength while reducing weight, making it ideal for performance-focused rigging systems.
Key Features
- Ultra-compact low friction eye for lightweight applications
- HV500 hard anodised aluminium for superior wear resistance
- No moving parts – maintenance-free operation
- Excellent strength-to-weight ratio
- Optimised curved profile to reduce friction
Technical Specifications
Part Number 60449 Product Type High Load Low Friction Eye Bore Diameter 6 mm Internal Diameter 3 mm External Diameter 12 mm Max Rope Diameter 3 mm (1/8") Safe Working Load (SWL) 300 kg (661 lbs) Weight 1 g Dimensions 12 × 12 × 6 mm Material Hard anodised aluminium (HV500)
Applications
- Lazy jacks and lightweight control lines
- Barber haulers and tweakers
- Mast base tidy systems
- Ultra-light performance rigging setups
According to the Barton high load eye specification, this range delivers exceptional strength-to-weight ratio and extremely low friction performance, with significantly increased strength and reduced weight compared to traditional blocks :contentReference[oaicite:0]{index=0}.
The Barton high load eyes are engineered for maximum efficiency, minimal friction, and long-term durability, making them ideal for modern lightweight rigging systems.
-
