ID
1360558
$ 40.53
1-2 weeks delivery time
-
+
The Barton 60453 is a high load low friction eye with a 22 mm bore, designed for ropes up to 12 mm. Manufactured from marine-grade aluminium with HV500 hard anodised finish, it delivers extremely low friction and outstanding strength-to-weight performance. With a working load of 3300 kg, it is ideal for high-load rigging, control systems, and performance sailing applications.
- Description
- Ask a Question
-

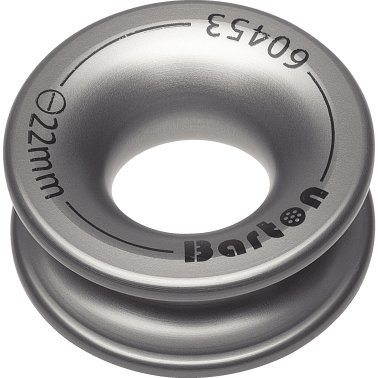

Barton 60453 – High Load Low Friction Eye 22mm, Hard Anodised Aluminium, Bore 22mm, Max Rope 12mm
The Barton 60453 High Load Eye is a heavy-duty low friction line guide designed for high-load rope applications. Featuring a 22 mm bore, it ensures smooth rope movement with minimal friction and wear under demanding conditions.
Manufactured from marine-grade aluminium with HV500 hard anodised finish, this eye offers exceptional durability, corrosion resistance, and extremely low friction characteristics. Its ergonomic profile maximises strength while maintaining an efficient weight-to-strength ratio, making it ideal for modern high-performance rigging systems.
Key Features
- High load low friction eye for demanding applications
- HV500 hard anodised aluminium for superior wear resistance
- No moving parts – maintenance-free operation
- Optimised curved profile to minimise friction
- Exceptional strength-to-weight ratio
Technical Specifications
Part Number 60453 Product Type High Load Low Friction Eye Bore Diameter 22 mm Internal Diameter 12 mm External Diameter 52 mm Max Rope Diameter 12 mm (1/2") Safe Working Load (SWL) 3300 kg (7275 lbs) Weight 52 g Dimensions 52 × 52 × 22 mm Material Hard anodised aluminium (HV500)
Applications
- High-load control and rigging systems
- Genoa barber haulers and cascade systems
- Lazy jacks and structural line routing
- Performance sailing and industrial rope guidance
According to the Barton specification, this range delivers significantly increased strength and reduced weight compared to traditional blocks, while maintaining very low friction performance :contentReference[oaicite:0]{index=0}.
The Barton high load eyes are engineered for maximum efficiency, durability, and minimal friction, making them ideal for demanding marine and industrial applications.
-
