ID
1360559
$ 55.91
1-2 weeks delivery time
-
+
The Barton 60454 is the largest high load low friction eye in the range, featuring a 28 mm bore and designed for ropes up to 16 mm. Manufactured from marine-grade aluminium with HV500 hard anodised finish, it delivers extremely low friction and exceptional strength-to-weight performance. With a very high load capacity, it is ideal for heavy-duty rigging, load-bearing control systems, and industrial applications.
- Description
- Ask a Question
-

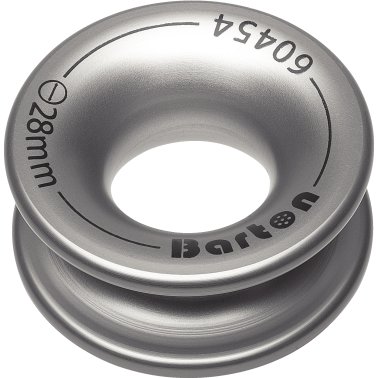

Barton 60454 – High Load Low Friction Eye 28mm, Hard Anodised Aluminium, Bore 28mm, Max Rope 16mm
The Barton 60454 High Load Eye is a heavy-duty low friction line guide designed for large diameter rope and high-load applications. Featuring a 28 mm bore, it allows smooth rope passage with minimal friction and wear under extreme loads.
Manufactured from marine-grade aluminium with HV500 hard anodised finish, this eye offers outstanding durability, corrosion resistance, and exceptional wear resistance. Its optimised curved profile ensures efficient load distribution while maintaining very low friction characteristics.
Key Features
- Heavy-duty low friction eye for high-load applications
- HV500 hard anodised aluminium for maximum wear resistance
- No moving parts – maintenance-free operation
- Optimised profile for minimal friction and efficient load handling
- Excellent strength-to-weight ratio
Technical Specifications
Part Number 60454 Product Type High Load Low Friction Eye Bore Diameter 28 mm Max Rope Diameter 16 mm (5/8") Material Hard anodised aluminium (HV500)
Applications
- Heavy-duty control and rigging systems
- Cascade systems and load distribution setups
- Industrial rope guidance and load handling
- Large yacht and commercial marine applications
According to the Barton specification, this size offers extremely high load capacity with minimal friction and significantly reduced weight compared to traditional blocks, making it ideal for modern high-performance systems :contentReference[oaicite:0]{index=0}.
The Barton high load eyes are engineered for maximum strength, efficiency, and durability, delivering reliable performance in the most demanding environments.
-
