ID
1360562
$ 230
1-2 weeks delivery time
-
+
The Barton 60462 is a heavy-duty low friction eye with a 28 mm bore and integrated 9 mm Dyneema loop (310 mm length), designed for ropes up to 16 mm. It provides an extremely strong, lightweight, and flexible solution for high-load line redirection without traditional hardware. With a working load of 3600 kg, it is ideal for demanding rigging, load handling, and performance sailing systems.
- Description
- Ask a Question
-

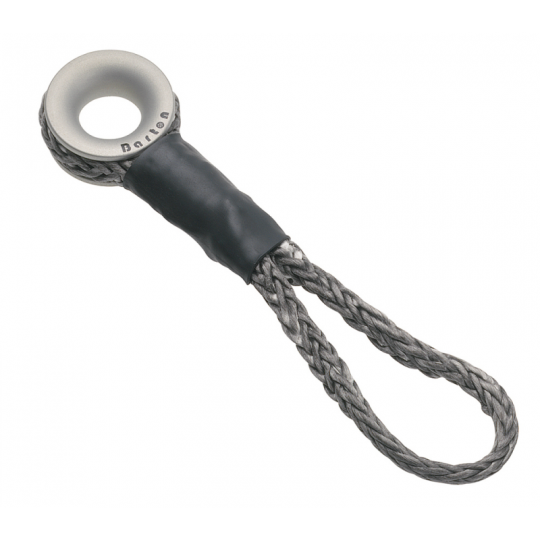

Barton 60462 – Low Friction Eye with Dyneema Loop 28mm, Bore 28mm, Loop 310mm, Max Rope 16mm
The Barton 60462 High Load Eye with Dyneema Loop is a heavy-duty low friction line guide system designed for high-load and large diameter rope applications. Featuring a 28 mm hard anodised aluminium eye and a high-strength Dyneema loop, it provides a powerful and flexible alternative to traditional blocks.
The 310 mm Dyneema loop enables quick and secure attachment to a wide range of mounting points without tools or permanent installation. The low friction eye ensures smooth rope movement with minimal wear, delivering an exceptional strength-to-weight ratio for demanding environments.
Key Features
- Heavy-duty low friction eye with integrated Dyneema loop
- 28 mm bore for large diameter rope applications
- Hard anodised aluminium for durability and low friction
- Long Dyneema loop for versatile and secure attachment
- No moving parts – maintenance-free operation
- Extremely high strength with low weight
Technical Specifications
Part Number 60462 Product Type Low Friction Eye with Dyneema Loop Bore Diameter 28 mm Loop Length 310 mm Max Rope Diameter 16 mm (5/8") Safe Working Load (SWL) 3600 kg (7936 lbs) Weight 137 g Dimensions 350 × 65 × 29 mm Material Hard anodised aluminium eye with Dyneema loop
Applications
- Heavy-duty barber haulers and preventer systems
- High-load rigging and cascade systems
- Temporary or emergency block replacement
- Toe rail and deck-mounted line guidance
- Commercial and industrial rope handling
According to the Barton specification, this configuration delivers significantly higher strength and reduced weight compared to traditional blocks, while maintaining very low friction performance.
The Barton low friction eye with Dyneema loop is engineered for maximum strength, flexibility, and efficiency, providing a simple and highly effective solution for demanding rigging systems.
-
