The Barton 18010 is a 0.6 m drilled aluminium traveller track (Size 0, 16 mm width) designed for dinghy and small boat applications. Featuring recirculating Delrin ball bearing compatibility and pre-drilled fixing points at 50 mm centres, it provides smooth traveller operation and reliable load handling up to 130 kg.
- Description
- Ask a Question
-

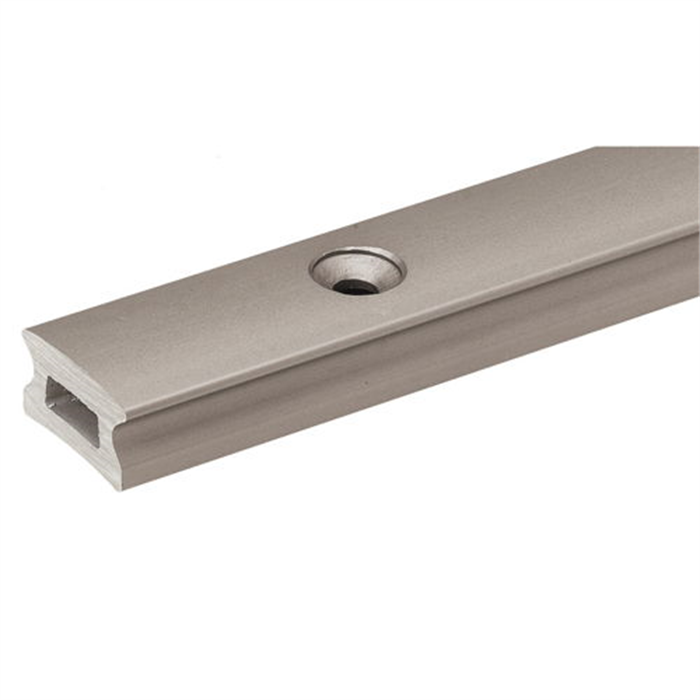

Barton 18010 – Drilled Track Size 0 0.6m, 16mm Traveller Track, SWL 130kg
The Barton 18010 Drilled Track is a Size 0 (16 mm) aluminium traveller track designed for compact dinghy and dayboat traveller systems. With a length of 0.6 m, it provides a reliable and smooth-running base for recirculating ball bearing traveller cars.
The track is drilled and countersunk at 50 mm centres, with the first fixing positioned 50 mm from the end, ensuring easy and secure installation. Manufactured from marine-grade aluminium with anodised finish, it offers excellent corrosion resistance and durability in marine environments.
Key Features
- Size 0 traveller track – 16 mm width
- Pre-drilled and countersunk at 50 mm centres
- Compatible with Barton recirculating ball bearing traveller systems
- Marine-grade aluminium with anodised finish
- Compact and lightweight design for dinghies and small boats
Technical Specifications
Part Number 18010 Product Type Drilled Traveller Track Track Size Size 0 (16 mm) Length 0.6 m Safe Working Load (SWL) 130 kg (286 lbs) Fastenings 4 mm Weight 227 g Dimensions 600 × 20 × 12 mm
Applications
- Dinghy and dayboat mainsheet traveller systems
- Compact cockpit traveller installations
- Lightweight performance sailing setups
- Replacement or upgrade of existing traveller tracks
According to the Barton traveller system specification, this 16 mm recirculating ball bearing system provides smooth operation and supports loads up to 130 kg, making it ideal for small craft and performance applications :contentReference[oaicite:0]{index=0}.
The Barton drilled traveller track is engineered for smooth operation, durability, and precise installation, ensuring reliable performance in compact sailing systems.
-
