ID
1360663
$ 20.48
1-2 weeks delivery time
-
+
The Barton N12110 is a Size 2 single fixed eye block with a 35 mm ball bearing sheave, designed for ropes up to 8 mm. Weighing 41 g, it delivers low-friction performance with a working load of 370 kg, break load of 740 kg, and a maximum rolling load of 260 kg, making it ideal for dynamic control systems on dinghies and yachts.
- Description
- Ask a Question
-

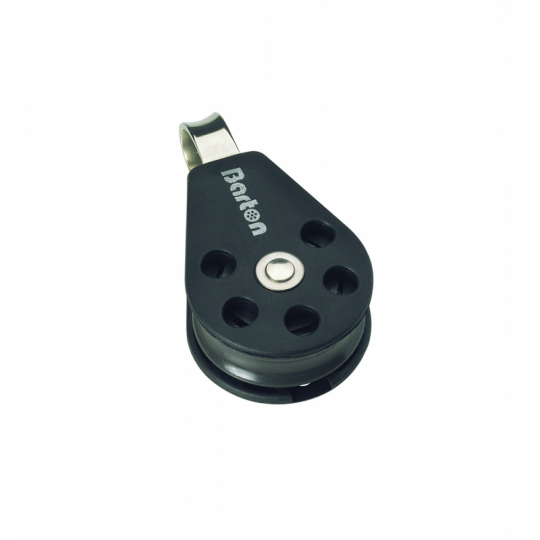

Barton N12110 - Single Fixed Eye Block Size 2 35mm – Ball Bearing, Ø35mm Sheave, Max Rope 8mm
The Barton N12110 Single Fixed Eye Block is part of the Size 2 (35 mm) range, featuring a ball bearing sheave and an internal stainless steel frame for enhanced strength and durability. This configuration ensures smooth, efficient operation in demanding sailing environments.
The fixed eye attachment provides secure and stable mounting, while the ball bearing system delivers low-friction performance for dynamic and frequently adjusted lines. This block is ideal for dinghies, racing boats, and performance yachts.
Key Features
- Single sheave block with fixed eye attachment
- Ball bearing system for smooth, low-friction operation
- Internal stainless steel frame for increased strength and durability
- Optimized for dynamic control systems
- Lightweight construction – 41 g
Technical Specifications
Part Number N12110 Block Type Single Fixed Eye Size Size 2 (35 mm) Sheave Diameter 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 41 g Dimensions 67 × 38 × 24 mm
Applications
- Dynamic control and trimming systems
- Low-friction line guidance
- Dinghies, dayboats, and performance yachts
- General-purpose rigging applications
The Barton Size 2 ball bearing blocks are engineered for maximum efficiency and smooth load handling, delivering reliable performance across a wide range of sailing applications.
-
