ID
1360661
$ 21.57
1-2 weeks delivery time
-
+

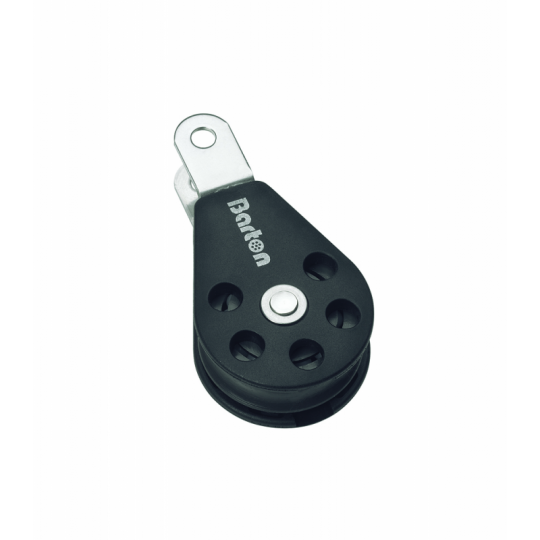

The Barton N02091 is a Size 2 single block with double tang attachment and becket, featuring a 35 mm plain bearing sheave for ropes up to 8 mm. Weighing 64 g, it provides reliable load handling with a working load of 370 kg and break load of 740 kg, making it ideal for compact purchase systems with rope termination on larger dinghies and yachts.
- Description
- Ask a Question
-

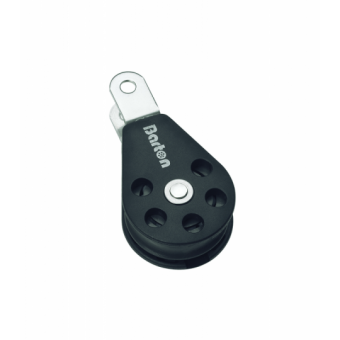

Barton N02091 - Single Double Tang Block with Becket Size 2 35mm – Plain Bearing, Ø35mm Sheave, Max Rope 8mm
The Barton N02091 Single Double Tang Block with Becket is part of the Size 2 (35 mm) range, featuring a plain bearing sheave and an internal stainless steel frame for enhanced strength and durability. The integrated becket enables secure rope termination in compact rigging systems.
The double tang attachment provides a stable and versatile mounting solution, while the plain bearing system is optimized for high load capacity and controlled line handling. This block is well suited for use on larger dinghies, dayboats, and yachts where strength and reliability are essential.
Key Features
- Single sheave block with double tang and integrated becket
- Internal stainless steel frame for increased strength and durability
- Plain bearing system for high load applications
- Becket for rope termination in purchase systems
- Versatile and secure mounting configuration
- Lightweight construction – 64 g
Technical Specifications
Part Number N02091 Block Type Single Double Tang + Becket Size Size 2 (35 mm) Sheave Diameter 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 64 g Dimensions 88 × 38 × 24 mm
Applications
- Compact purchase systems with rope termination
- Control and trimming systems
- General-purpose rigging on dinghies and yachts
- High-load line guidance applications
The Barton Size 2 plain bearing blocks are engineered for high strength, durability, and versatile performance, providing reliable operation across a wide range of sailing applications.
-
