The Osculati Manual Boat Haulage Winches are designed for trailer, boat launching, recovery, and hauling applications. Manufactured with a chromed-zinc steel body, hardened steel pinions, stainless steel springs, reinforced handles, self-lubricating bushings, and enclosed gearing, these winches provide reliable operation and long service life. Available in single-speed and double-speed versions with pulling capacities from 350 kg to 1125 kg and cable capacities up to 33 m depending on cable diameter.
- Description
- Ask a Question
-
Osculati Manual Boat Haulage Winches – Single & Double Speed, 350-1125 kg Pull Capacity

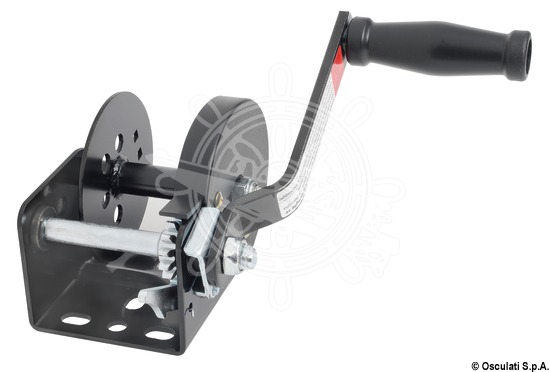

The Osculati manual boat haulage winches are designed for boat trailers, launching systems, recovery operations, and general marine hauling applications. The robust construction combines a chromed-zinc steel frame with hardened steel gears, stainless steel springs, reinforced handles, and enclosed gear mechanisms for reliable performance and durability.
All models feature self-lubricating bushings and black epoxy powder coating for corrosion protection. Depending on the version, winches are available with single-speed or double-speed gearing and offer forward, idle, and reverse functions. The maximum traction load is specified with a single cable turn remaining on the drum.
Key Features
- Chromed-zinc steel construction
- Black epoxy powder-coated finish
- Hardened steel pinions
- Stainless steel springs
- Self-lubricating bushings
- Reinforced operating handle
- Enclosed gear mechanism
- Single-speed and double-speed versions available
- Forward, idle, and reverse operation on selected models
- CE certified by TÜV
Technical Specifications
Code Max Pull (kg) Ratio Cable Capacity Speed Gear Function Base Size (mm) 02.800.00 350 3.2:1 33 m (Ø3 mm) / 14 m (Ø5 mm) Single Forward and Idle 95 x 94 02.100.00 450 4:1 24 m (Ø5 mm) / 13 m (Ø8 mm) Single Forward and Idle 140 x 88 02.120.00 540 4:1 24 m (Ø5 mm) / 13 m (Ø8 mm) Single Forward, Idle, Reverse 140 x 88 02.140.00 630 4:1 24 m (Ø5 mm) / 13 m (Ø8 mm) Single Forward, Idle, Reverse 140 x 88 02.150.00 727 4:1 24 m (Ø5 mm) / 13 m (Ø8 mm) Single Forward, Idle, Reverse 138 x 89 02.200.00 900 4:1 / 10:1 30 m (Ø5 mm) / 15 m (Ø8 mm) Double Forward, Idle, Reverse 175 x 125 02.250.00 1125 5:1 / 12:1 30 m (Ø5 mm) / 15 m (Ø8 mm) Double Forward, Idle, Reverse 175 x 125
Construction Details
- Chromed-zinc steel body
- High-strength hardened steel gears
- Stainless steel springs
- Reinforced handle assembly
- Self-lubricating bearing bushings
- Protected enclosed gearing system
- Black epoxy corrosion-resistant coating
Applications
- Boat trailer loading and recovery
- Launching operations
- Boat haulage systems
- Marine utility applications
- General pulling and lifting operations
Note: Model 02.250.00 is fitted with a quick manual brake. Maximum pulling capacities are specified with one cable turn remaining on the drum.
-
