Osculati Dual Drive Boat Haulage Winch – 727-1454 kg Pull Capacity

ID 1379184

$ 93.57

1-2 weeks delivery time

Type:

727 kg
900 kg
1454 kg

The Osculati Dual Drive Boat Haulage Winch is designed for high-load boat trailer and hauling applications. Featuring drive gears on both sides of the drum, it delivers increased pulling power while maintaining compact dimensions. Available in 727 kg, 900 kg, and 1454 kg capacities, the winch offers forward, idle, and reverse operation, multiple gear ratios up to 12.1:1, and cable capacities for 3 mm, 5 mm, and 8 mm wire ropes. Selected models include a quick manual brake, while the 1454 kg version is TÜV Germany certified.

Description
Ask a Question

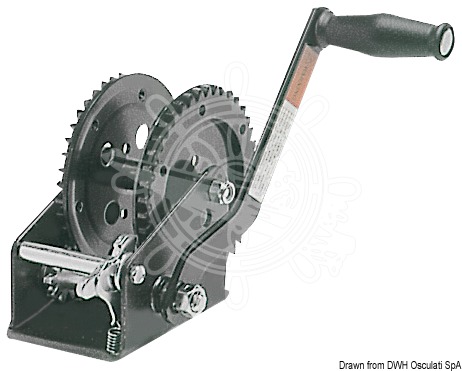

Osculati Dual Drive Boat Haulage Winch – 727-1454 kg Pull Capacity

The Osculati Dual Drive Boat Haulage Winch is engineered for demanding boat trailer, recovery, launching, and hauling applications. The dual-drive configuration utilizes drive gears on both sides of the drum, significantly increasing pulling efficiency while reducing overall winch dimensions.

The winch is available in three capacity versions ranging from 727 kg to 1454 kg. All models feature forward, idle, and reverse operation for controlled load handling and smooth retrieval. Depending on the version, single-speed and dual-ratio gear systems are available to optimize pulling force and operating speed.

The maximum traction loads specified are based on operation with a single cable turn on the drum.

Key Features

Dual-drive gear system with gears on both sides of the drum
Compact design with increased pulling power
Forward, idle, and reverse operation
Single and dual-ratio versions available
Suitable for boat trailers and hauling systems
High-capacity wire rope storage
Quick manual brake on selected model
TÜV Germany certified version available

Technical Specifications

Code	Max Pull (kg)	Ratio	Cable Capacity	Operation	Dimensions (mm)
02.160.00	727	3.5:1	33 m (Ø3 mm) / 14 m (Ø5 mm)	Forward, Idle, Reverse	90 x 160 x 130
02.161.00	900	4.1:1	24 m (Ø5 mm) / 13 m (Ø8 mm)	Forward, Idle, Reverse	90 x 190 x 160
02.260.00	1454	5.1:1 + 12.1:1	30 m (Ø5 mm) / 15 m (Ø8 mm)	Forward, Idle, Reverse	230 x 194 x 131

Version Details

Code	Special Features
02.160.00	Standard dual-drive winch
02.161.00	Fitted with quick manual brake
02.260.00	Dual-ratio gearbox, TÜV Germany certified

Applications

Boat trailer loading and launching
Boat recovery systems
Marine hauling operations
Utility trailers
Heavy-duty pulling applications

Note: Maximum traction load values are specified using a single cable turn on the drum.
