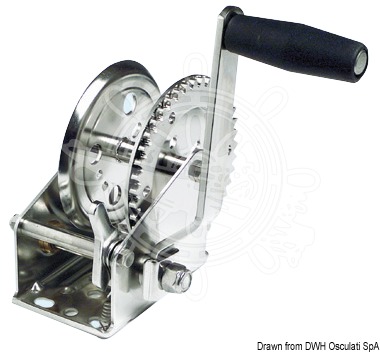

Osculati AISI 304 Stainless Steel Dual Drive Boat Haulage Winch – 384-900 kg Pull Capacity

ID 1379188

$ 296.83

1-2 weeks delivery time

Type:

384 Kg
545 Kg
900 kg

The Osculati Dual Drive Boat Haulage Winch is manufactured from high-resistance AISI 304 stainless steel with an electropolished finish for corrosion resistance and long service life. Equipped with self-lubricating rotating bushings and TÜV Germany certification, the winch range offers pull capacities from 384 kg to 900 kg. Available in single- and dual-gear versions with forward, idle, and reverse operation, the winches accommodate wire ropes up to 33 m of Ø3 mm or 24 m of Ø5 mm cable, depending on the model.

Description
Ask a Question

Osculati AISI 304 Stainless Steel Dual Drive Boat Haulage Winch – 384-900 kg Pull Capacity

The Osculati Dual Drive Boat Haulage Winch is designed for trailer, launching, recovery, and general hauling applications where corrosion resistance and reliability are essential. Manufactured from high-resistance AISI 304 stainless steel with an electropolished finish, the winch is suitable for demanding marine environments.

The dual-drive design provides efficient power transmission and compact dimensions, while self-lubricating rotating bushings reduce maintenance requirements and ensure smooth operation. Depending on the model, the winch is available with single- or dual-gear configurations and supports forward, idle, and reverse operation.

All versions are TÜV Germany certified. Maximum traction loads are specified using a single cable turn on the drum.

Key Features

High-resistance AISI 304 stainless steel construction
Electropolished finish for enhanced corrosion resistance
Dual-drive gear system
Self-lubricating rotating bushings
Forward, idle and reverse operation
Single- and dual-gear versions available
TÜV Germany certified
Suitable for marine and trailer applications

Technical Specifications

Code	Max Pull (kg)	Ratio	Cable Capacity	Gears	Operation	Dimensions (mm)
02.118.01	384	3:1	33 m (Ø3 mm) / 14 m (Ø5 mm)	1	Forward / Reverse	90 x 160 x 130
02.118.02	545	4.1:1	24 m (Ø5 mm) / 13 m (Ø8 mm)	2	Forward / Idle / Reverse	90 x 190 x 160
02.118.03	900	4.1:1	24 m (Ø5 mm) / 13 m (Ø8 mm)	2	Forward / Idle / Reverse	90 x 190 x 160

Version Overview

Code	Configuration
02.118.01	Single-gear stainless steel winch
02.118.02	Two-gear stainless steel winch
02.118.03	Heavy-duty two-gear stainless steel winch

Applications

Boat trailer winching
Boat launching and recovery
Marine hauling systems
General-purpose pulling operations
Corrosion-sensitive environments

Note: Maximum traction load values are based on operation with a single cable turn on the drum.
