The Rock Auto Brake Manual Winch is designed for safe boat trailer, recovery, and hauling applications. Featuring an integrated self-locking automatic brake system that activates with a minimum load of 25 kg, the winch maintains load control without external gearing. Manufactured from zinc-chromate steel with an epoxy powder-coated finish, it is available in 681 kg and 1135 kg pulling capacities and is supplied complete with cable and snap hook for immediate installation.
- Description
- Ask a Question
-

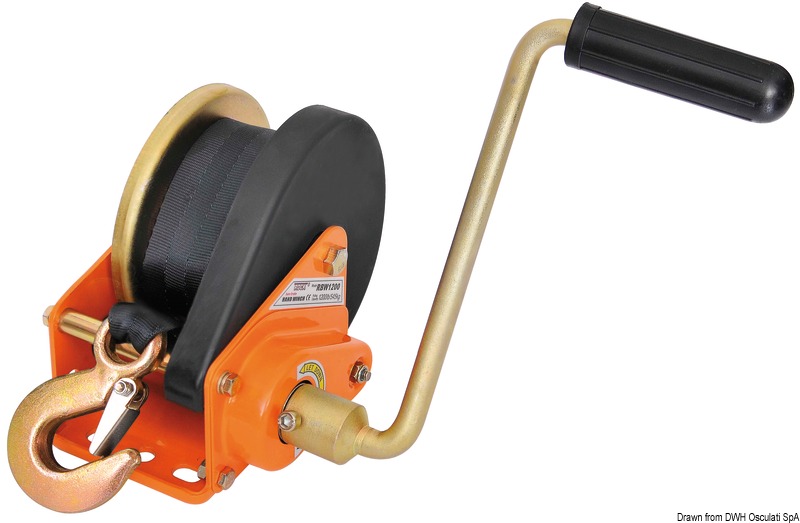

Rock Auto Brake Manual Trailer Winch with Automatic Brake – 681-1135 kg Pull Capacity
The Rock Auto Brake manual winch is engineered for safe and controlled hauling operations on boat trailers, launching systems, recovery equipment, and general pulling applications. The integrated automatic brake mechanism provides secure load holding and activates automatically when subjected to a minimum load of 25 kg.
Unlike conventional winches that rely on exposed gear systems, the Auto Brake design incorporates a self-locking mechanism within the winch assembly, improving safety and simplifying operation. The housing is manufactured from zinc-chromate steel and protected with an epoxy powder-coated finish for enhanced corrosion resistance.
Each winch is supplied complete with cable and snap hook, providing a ready-to-install solution for trailer and marine applications.
Key Features
- Integrated automatic self-locking brake
- Brake activates with loads above 25 kg
- No external gearing
- Zinc-chromate steel construction
- Epoxy powder-coated finish
- Supplied with cable and snap hook
- Manual operation
- Suitable for boat trailers and hauling systems
Technical Specifications
Code Max Pull (kg) Ratio Cable Capacity Included Accessories 02.130.02 681 5.1:1 17 m of Ø4.76 mm steel cable 6 m of 48 mm strap + 1/4" snap hook 02.130.04 1135 11.1:1 17 m of Ø6.35 mm steel cable 10 m of Ø6.35 mm steel cable + 1/4" snap hook
Dimensions
Code Overall Length (mm) Overall Height (mm) Base Length (mm) Drum Diameter Area (mm) 02.130.02 300 252 188 151.5 02.130.04 350 309 170 176.5
Construction Details
- Self-locking automatic brake mechanism
- Zinc-chromate steel body
- Epoxy powder-coated protection
- Heavy-duty drum assembly
- Integrated load holding system
- Corrosion-resistant marine construction
Applications
- Boat trailer loading and recovery
- Launching systems
- Marine hauling operations
- Utility trailers
- General pulling and recovery tasks
Note: The automatic brake mechanism activates under a minimum load of 25 kg and is designed to securely hold the load during operation.
-
