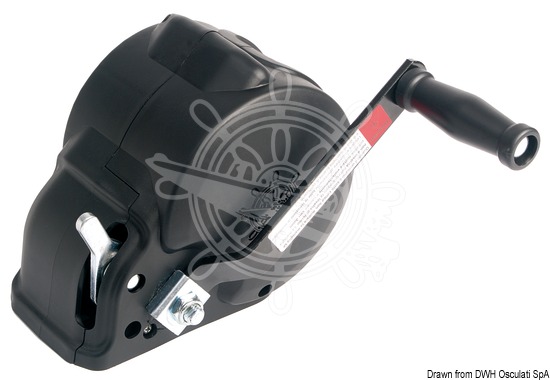

Osculati Manual Boat Haulage Winch with Technopolymer Housing – 540-630 kg Pull Capacity

ID 1379178

$ 124.66

1-2 weeks delivery time

Type:

540 kg
630 kg

The Osculati Manual Boat Haulage Winch with Technopolymer Housing combines a corrosion-resistant epoxy-coated steel frame with a durable external technopolymer case that protects the drum and gearing from dirt, water, and accidental damage. Equipped with hardened steel pinions, self-lubricating bushings, reinforced handles, and steel springs, these single-speed winches offer pulling capacities of 540 kg and 630 kg. Suitable for trailer and boat recovery applications, both models feature forward, idle, and reverse operation and accommodate up to 24 m of 5 mm cable or 13 m of 8 mm cable.

Description
Ask a Question

Osculati Manual Boat Haulage Winch with Technopolymer Housing – 540-630 kg Pull Capacity

The Osculati manual boat haulage winch is designed for reliable trailer, launching, recovery, and hauling operations. The unit combines a robust steel internal structure with a protective technopolymer external housing that shields the drum and gearing from exposure while maintaining a clean and compact design.

The winch features an epoxy powder-coated steel frame, hardened steel pinions, self-lubricating bushings, reinforced operating handle, and steel springs. The enclosed housing provides additional protection against dirt and environmental exposure, making it suitable for marine and trailer applications.

Both available versions offer single-speed operation with forward, idle, and reverse gearing for controlled handling during loading and recovery procedures.

Key Features

Technopolymer protective housing
Epoxy powder-coated steel frame
Hardened steel pinions
Self-lubricating bushings
Reinforced operating handle
Steel springs
Single-speed operation
Forward, idle, and reverse gearing
Compact enclosed design
CE certified by TÜV

Technical Specifications

Code	Max Pull (kg)	Ratio	Cable Capacity	Speed	Gear Function
02.120.01	540	4:1	24 m (Ø5 mm) / 13 m (Ø8 mm)	Single	Forward, Idle, Reverse
02.140.01	630	4:1	24 m (Ø5 mm) / 13 m (Ø8 mm)	Single	Forward, Idle, Reverse

Construction Details

Specification	Value
Housing Material	Technopolymer
Frame Material	Epoxy Powder-Coated Steel
Pinions	Hardened Steel
Bushings	Self-Lubricating
Handle Type	Reinforced Manual Handle
Operation	Forward / Idle / Reverse
Certification	CE Certified by TÜV

Applications

Boat trailer loading and unloading
Boat launching systems
Boat recovery operations
Marine haulage applications
General pulling operations

Note: Maximum pulling capacity is specified using the appropriate cable size and installation conditions recommended by the manufacturer.
