Tecnoseal Yamaha Outboard Anode Kit 300–350 HP Extended Protection

Tecnoseal Yamaha Outboard Anode Kit 300–350 HP Extended Protection – Zinc, Aluminium or Magnesium

The Tecnoseal KITYAMAHA300-350XP series consists of extended protection sacrificial anode kits designed for Yamaha 300–350 HP outboard motors. Each kit contains three replacement anodes manufactured from the same sacrificial material, providing corrosion protection for compatible Yamaha outboard components. Mounting hardware is not included.

Each kit includes one Tecnoseal 01112-1 series anode, one Tecnoseal 01155 lower unit anode and one Tecnoseal 01169 gear case cap anode. These components help protect metallic outboard parts against galvanic corrosion by acting as sacrificial anodes that corrode preferentially during service.

Compared with the standard Tecnoseal Yamaha 300–350 HP anode kit, the extended protection version includes an additional Tecnoseal 01169 gear case cap anode. This increases the number of sacrificial anodes from two to three, providing an additional corrosion protection component for the gear case.

Three material versions are available: zinc (Tecnoseal KITYAMAHA300-350XP), aluminium (Tecnoseal KITYAMAHA300-350XPAL) and magnesium (Tecnoseal KITYAMAHA300-350XPMG). According to the Tecnoseal catalogue, the zinc kit weighs 2.25 kg (4.96 lbs), the aluminium kit weighs 0.96 kg (2.12 lbs) and the magnesium kit weighs 0.68 kg (1.50 lbs).

Technical Specifications

Available Kit Versions

Kit Contents

Individual Kit Components

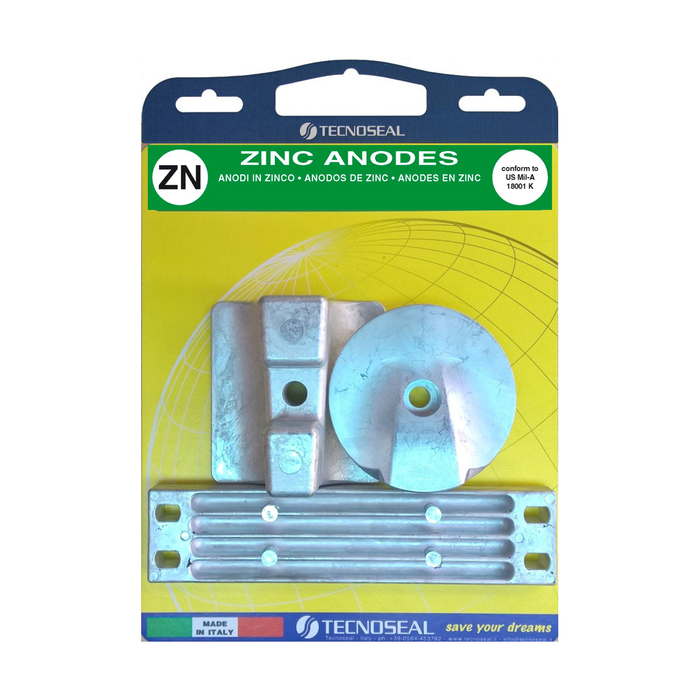

• Zinc Kit – Tecnoseal KITYAMAHA300-350XP:
  • 1 × Tecnoseal 01112-1 zinc anode
  • 1 × Tecnoseal 01155 zinc lower unit anode
  • 1 × Tecnoseal 01169 zinc gear case cap anode
  • Total: 3 zinc anodes
• Aluminium Kit – Tecnoseal KITYAMAHA300-350XPAL:
  • 1 × Tecnoseal 01112-1AL aluminium anode
  • 1 × Tecnoseal 01155AL aluminium lower unit anode
  • 1 × Tecnoseal 01169AL aluminium gear case cap anode
  • Total: 3 aluminium anodes
• Magnesium Kit – Tecnoseal KITYAMAHA300-350XPMG:
  • 1 × Tecnoseal 01112-1MG magnesium anode
  • 1 × Tecnoseal 01155MG magnesium lower unit anode
  • 1 × Tecnoseal 01169MG magnesium gear case cap anode
  • Total: 3 magnesium anodes

Standard Kit vs Extended Protection Kit

Packaging Options

The Tecnoseal catalogue lists the following packaging formats for these anode kits:

• Branded box
• Blister pack for hanging display
• Polybag
• Skin pack for hanging display

The packaging format supplied with an individual order should be confirmed separately.

Compatibility and Product References

• Compatible Manufacturer: Yamaha
• Outboard Power Range: 300–350 HP
• Protection Configuration: Extended Protection (XP)
• Zinc Kit: Tecnoseal KITYAMAHA300-350XP
• Aluminium Kit: Tecnoseal KITYAMAHA300-350XPAL
• Magnesium Kit: Tecnoseal KITYAMAHA300-350XPMG
• Included Component Series: Tecnoseal 01112-1, 01155 and 01169

Key Features

• Designed for compatible Yamaha 300–350 HP outboard motors.
• Three-piece extended protection sacrificial anode kit.
• Includes one Tecnoseal 01112-1 series anode.
• Includes one Tecnoseal 01155 series lower unit anode.
• Includes one Tecnoseal 01169 series gear case cap anode.
• Additional gear case cap anode compared with the standard two-piece kit.
• Available in zinc, aluminium and magnesium versions.
• Zinc kit: 2.25 kg (4.96 lbs).
• Aluminium kit: 0.96 kg (2.12 lbs).
• Magnesium kit: 0.68 kg (1.50 lbs).
• Mounting hardware is not included.
• Helps protect metallic outboard components against galvanic corrosion.

Compatibility Note: Before ordering, verify the Yamaha outboard model and individual anode part numbers included in the kit. The stated 300–350 HP range does not establish compatibility with every Yamaha outboard within that range. Select the appropriate sacrificial anode material according to Yamaha's recommendations and operating water conditions. Mounting hardware is not included and must be supplied separately if required.
