Tecnoseal Yamaha Outboard Anode Kit 80–100 HP

Tecnoseal Yamaha Outboard Anode Kit 80–100 HP – Zinc or Magnesium

The Tecnoseal KITYAMAHA80-100 series consists of sacrificial anode kits designed for Yamaha 80–100 HP outboard motors. Each kit contains three replacement anodes manufactured from the same sacrificial material, helping protect compatible Yamaha outboard components against galvanic corrosion. Mounting hardware is not included.

Each kit includes one Tecnoseal 01115 series anode, one Tecnoseal 01140 series trim tab anode and one Tecnoseal 01146 series crankcase cylinder anode. These components provide sacrificial corrosion protection by corroding preferentially during service, helping reduce galvanic corrosion of protected metallic outboard parts.

Two material versions are available: zinc (Tecnoseal KITYAMAHA80-100) and magnesium (Tecnoseal KITYAMAHA80-100MG). According to the Tecnoseal catalogue, the zinc kit weighs 0.93 kg (2.05 lbs), while the magnesium kit weighs 0.38 kg (0.84 lbs). Both versions contain three anodes in their respective materials.

Technical Specifications

Available Kit Versions

Kit Contents

Individual Kit Components

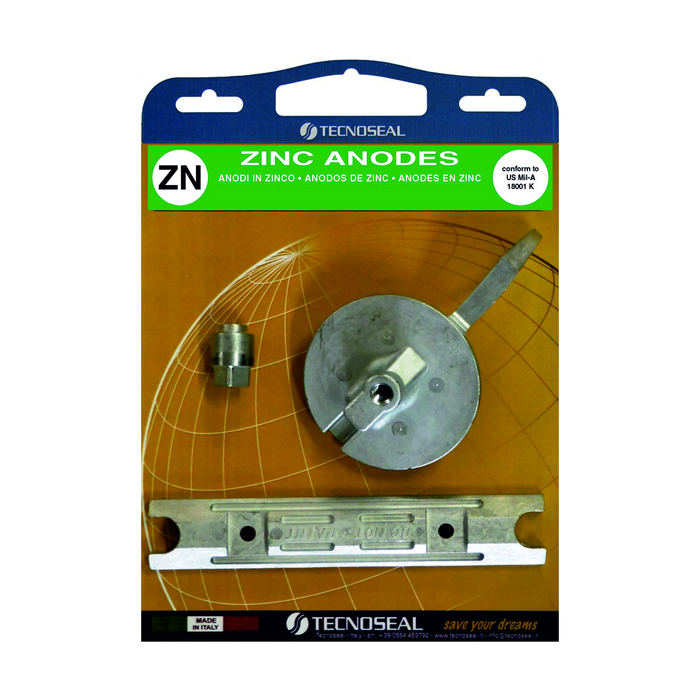

Zinc Kit – Tecnoseal KITYAMAHA80-100

• 1 × Tecnoseal 01115 zinc anode
• 1 × Tecnoseal 01140 zinc trim tab anode
• 1 × Tecnoseal 01146 zinc crankcase cylinder anode
• Total: 3 zinc anodes
• Kit Weight: 0.93 kg (2.05 lbs)

Magnesium Kit – Tecnoseal KITYAMAHA80-100MG

• 1 × Tecnoseal 01115MG magnesium anode
• 1 × Tecnoseal 01140MG magnesium trim tab anode
• 1 × Tecnoseal 01146MG magnesium crankcase cylinder anode
• Total: 3 magnesium anodes
• Kit Weight: 0.38 kg (0.84 lbs)

Packaging Options

The Tecnoseal catalogue lists the following packaging formats for these anode kits:

• Branded box
• Polybag
• Skin pack for hanging display

The packaging format supplied with an individual order should be confirmed separately.

Compatibility and Product References

• Compatible Manufacturer: Yamaha
• Outboard Power Range: 80–100 HP
• Zinc Kit: Tecnoseal KITYAMAHA80-100
• Magnesium Kit: Tecnoseal KITYAMAHA80-100MG
• Included Component Series: Tecnoseal 01115, 01140 and 01146

Key Features

• Designed for compatible Yamaha 80–100 HP outboard motors.
• Three-piece sacrificial anode kit.
• Includes one Tecnoseal 01115 series anode.
• Includes one Tecnoseal 01140 series trim tab anode.
• Includes one Tecnoseal 01146 series crankcase cylinder anode.
• Available in zinc and magnesium versions.
• Zinc kit: 0.93 kg (2.05 lbs).
• Magnesium kit: 0.38 kg (0.84 lbs).
• Mounting hardware is not included.
• Helps protect compatible metallic outboard components against galvanic corrosion.

Compatibility Note: Before ordering, verify the Yamaha outboard model and individual anode part numbers included in the kit. The stated 80–100 HP range does not establish compatibility with every Yamaha outboard within that range. Select the appropriate sacrificial anode material according to Yamaha's recommendations and operating water conditions. Mounting hardware is not included and must be supplied separately if required.
