The Tecnoseal 01306 is a zinc sacrificial rod anode with a steel insert, designed for Yanmar SD20, SD25, SD30, SD31, 4LH-STE, 6LY-STE and 6LY-UTE marine engine and saildrive applications. It corresponds to Yanmar OEM part numbers 27210-200550 and 177301-54900. The anode features a cylindrical zinc body measuring 20 mm (0.79 in) in diameter and 55 mm (2.17 in) in length, with a 10 mm (0.39 in) threaded stud extension and M8 mounting thread. It weighs 0.12 kg (0.26 lbs) and provides sacrificial corrosion protection for compatible marine components.
- Description
- Ask a Question
-

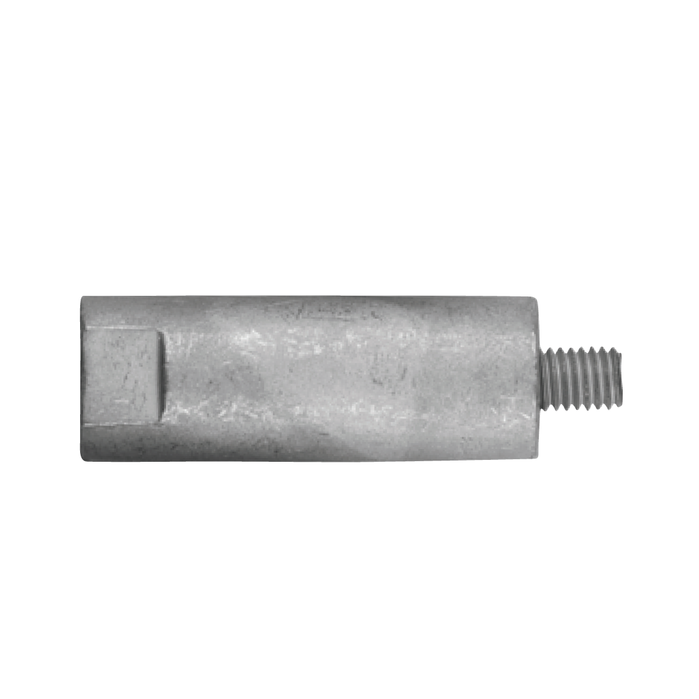

Tecnoseal 27210-200550 177301-54900 Yanmar Engine Zinc Rod Anode Ø20 mm M8
The Tecnoseal 01306 is a zinc sacrificial rod anode designed for Yanmar SD20, SD25, SD30, SD31, 4LH-STE, 6LY-STE and 6LY-UTE series marine applications. It features a cylindrical zinc body with a steel insert and an M8 threaded mounting stud, helping protect compatible metallic components against galvanic corrosion.
This replacement anode corresponds to Yanmar OEM part numbers 27210-200550 and 177301-54900. The zinc body measures 20 mm (0.79 in) in diameter and 55 mm (2.17 in) in length, with a 10 mm (0.39 in) threaded stud extension. Its catalogue weight is 0.12 kg (0.26 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 01306 Product Type Engine Rod Anode Material Zinc Insert Steel Diameter (Ø) 20 mm (0.79 in) Body Length (l) 55 mm (2.17 in) Threaded Stud Length (l1) 10 mm (0.39 in) Mounting Thread (b) M8 Weight 0.12 kg (0.26 lbs) EAN 8033837065883
Yanmar Compatibility
- Yanmar SD20
- Yanmar SD25
- Yanmar SD30
- Yanmar SD31
- Yanmar 4LH-STE series
- Yanmar 6LY-STE series
- Yanmar 6LY-UTE series
OEM and Product Cross-References
- Yanmar OEM: 27210-200550
- Yanmar OEM: 177301-54900
- Tecnoseal Product Code: 01306
- EAN: 8033837065883
Key Features
- Zinc sacrificial rod anode for compatible Yanmar marine engines and saildrives.
- Steel insert with M8 threaded mounting stud.
- Cylindrical zinc body with a diameter of 20 mm.
- 55 mm body length and 10 mm threaded stud extension.
- Corresponds to Yanmar OEM references 27210-200550 and 177301-54900.
- Helps protect compatible metallic components against galvanic corrosion.
Compatibility Note: Before ordering, verify the original Yanmar part number, M8 mounting thread and anode dimensions against the existing component. Compatibility should be confirmed for the specific engine or saildrive model and configuration.
-
