ID
1404216
$ 76.49
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 750 g
- 290 g
- 180 g
The Tecnoseal OMC Horseshoe Front Gearcase Anode is designed for OMC Cobra 90 HP sterndrives and corresponds to original OEM part number 983494. Available in zinc (00906), aluminium (00906AL) and magnesium (00906MG), the anode features a horseshoe-shaped profile measuring 145 × 104 × 25 mm, with an internal dimension (i) of 113 mm and 1/4" UNC mounting threads. The zinc version weighs 0.75 kg (1.65 lbs), the aluminium version 0.29 kg (0.64 lbs) and the magnesium version 0.18 kg (0.40 lbs). All three versions share the same dimensions and provide sacrificial corrosion protection for the OMC Cobra front gearcase.
- Description
- Ask a Question
-

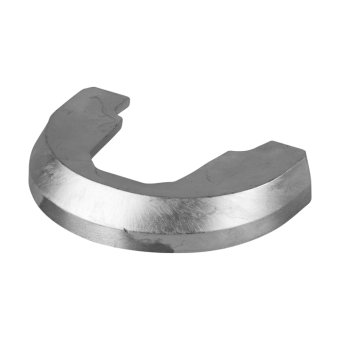

Tecnoseal 983494 OMC Cobra 90 HP Horseshoe Front Gearcase Anode
The Tecnoseal OMC Horseshoe Front Gearcase Anode is a sacrificial anode designed for the front gearcase of OMC Cobra 90 HP sterndrives. It corresponds to original OMC part number 983494 and is available in zinc, aluminium and magnesium versions for corrosion protection of compatible drive components.

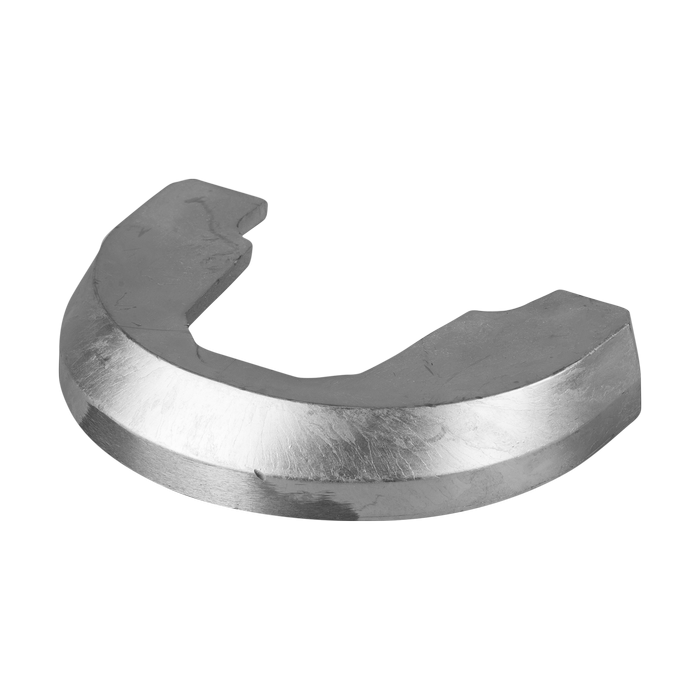

The anode features a horseshoe-shaped body with an open central section and two threaded mounting points. All three material versions have identical dimensions: 145 mm in overall length, 104 mm in width and 25 mm in height. The internal dimension (i) is 113 mm, and the mounting thread specification is 1/4" UNC. The weight varies according to the anode material.
Technical Specifications
Manufacturer Tecnoseal Product Type Horseshoe Front Gearcase Anode OEM Reference OMC 983494 Compatibility OMC Cobra 90 HP Available Materials Zinc, Aluminium, Magnesium Mounting Thread 1/4" UNC
Available Versions
Tecnoseal Part Number Material Weight 00906 Zinc 0.75 kg (1.65 lbs) 00906AL Aluminium 0.29 kg (0.64 lbs) 00906MG Magnesium 0.18 kg (0.40 lbs)
Dimensions
Dimension Measurement Overall Length (l) 145 mm (5.71") Width (a) 104 mm (4.09") Height (h) 25 mm (0.98") Internal Dimension (i) 113 mm (4.45") Mounting Thread (m) 1/4" UNC
Key Features
- Horseshoe-shaped sacrificial anode for OMC Cobra 90 HP front gearcases.
- Corresponds to original OEM part number 983494.
- Available in zinc, aluminium and magnesium.
- Open central section with two threaded mounting points.
- Identical mounting dimensions across all three material versions.
- Overall dimensions: 145 × 104 × 25 mm.
- Internal dimension: 113 mm.
- Mounting thread: 1/4" UNC.
-
