The Tecnoseal 00905 is a zinc sacrificial trim tab anode designed for Johnson-Evinrude 55 HP marine engines, corresponding to original OEM part number 338742. It features a circular anode body with an integrated vertical trim fin, measuring 130 mm in overall dimension (a), 60 mm in height (h) and 13 mm in lower height (h1). The circular section has a diameter of 110 mm, with mounting diameters of 18 mm and 11 mm. Weighing 0.44 kg (0.97 lbs), the anode provides sacrificial corrosion protection for compatible Johnson-Evinrude engine components.
- Description
- Ask a Question
-

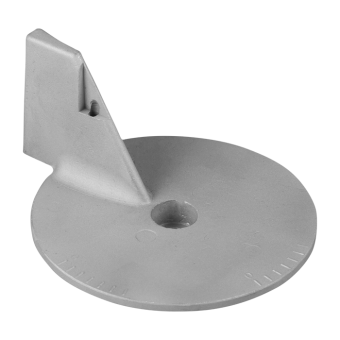

Tecnoseal 338742 Zinc Johnson-Evinrude Trim Tab Anode for 55 HP Engines
The Tecnoseal 00905 is a zinc sacrificial trim tab anode designed for Johnson-Evinrude 55 HP marine engines, listed for E.B. and F.B. applications in the Tecnoseal catalogue. It corresponds to original OEM part number 338742 and provides sacrificial corrosion protection for compatible engine components.

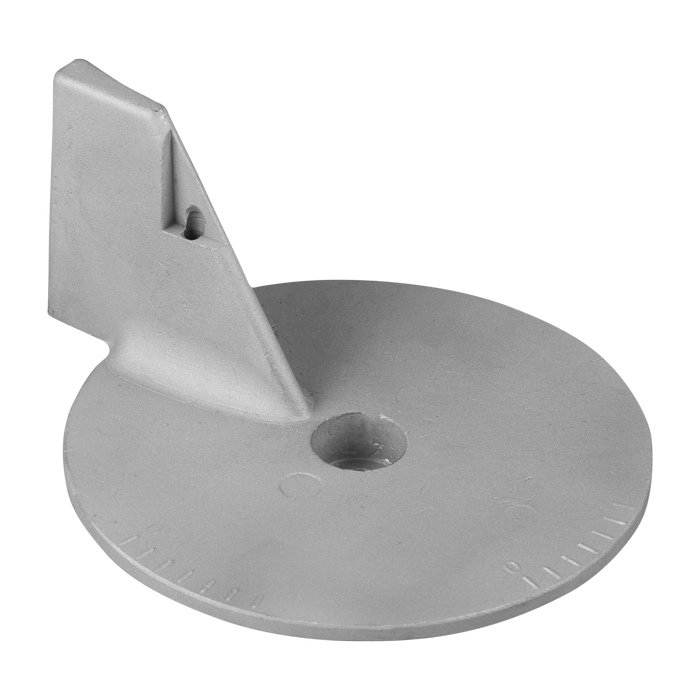

The anode features a circular body with an integrated vertical trim fin and a central mounting opening. Its overall dimension (a) is 130 mm, with a main body diameter of 110 mm. The vertical dimensions are 60 mm (h) and 13 mm (h1), while the mounting diameters are 18 mm (Ø1) and 11 mm (Ø2). The zinc anode weighs 0.44 kg (0.97 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 00905 OEM Reference Johnson-Evinrude 338742 Product Type Trim Tab Anode Material Zinc Engine Compatibility Johnson-Evinrude 55 HP (E.B. / F.B.) Weight 0.44 kg (0.97 lbs)
Dimensions
Dimension Measurement Overall Dimension (a) 130 mm (5.12") Overall Height (h) 60 mm (2.36") Lower Height (h1) 13 mm (0.51") Body Diameter (Ø) 110 mm (4.33") Mounting Diameter (Ø1) 18 mm (0.71") Mounting Diameter (Ø2) 11 mm (0.43")
Key Features
- Zinc sacrificial trim tab anode for Johnson-Evinrude 55 HP engines.
- Corresponds to original OEM part number 338742.
- Circular anode body with an integrated vertical trim fin.
- Body diameter: 110 mm.
- Overall dimension: 130 mm; total height: 60 mm.
- Mounting diameters: 18 mm and 11 mm.
- Weight: 0.44 kg.
-
