ID
1404583
$ 13.91
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 10 g
- 4 g
- 6 g
The Tecnoseal 00844 Series is a small cylindrical sacrificial anode designed for Mercury/Mariner outboard engine cylinder crankcase applications, corresponding to original part number 6G8-11325-00 and catalogue cross-references 01148 and 01750. Available in zinc (00844), aluminium (00844AL) and magnesium (00844MG), it helps protect compatible internal engine components against galvanic corrosion. The anode has a tapered cylindrical body with a central through-hole, measuring 16 mm (0.63") in height, 13 mm (0.51") in outer diameter, 12 mm (0.47") in secondary diameter and 5.50 mm (0.22") in hole diameter. According to the Tecnoseal catalogue, the zinc version weighs 0.01 kg (10 g / 0.02 lbs), aluminium 0.006 kg (6 g / 0.01 lbs) and magnesium 0.004 kg (4 g / 0.01 lbs). All three versions share identical dimensions.
- Description
- Ask a Question
-

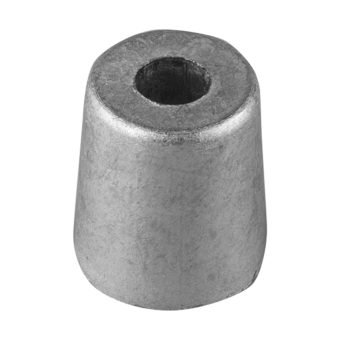

Tecnoseal 6G8-11325-00 Mercury/Mariner Cylinder Crankcase Anode
The Tecnoseal 00844 Series consists of small cylindrical sacrificial anodes for Mercury/Mariner outboard engine cylinder crankcase applications. These anodes help protect compatible internal metallic engine components against galvanic corrosion. The catalogue lists original part number 6G8-11325-00 and additional cross-references 01148 and 01750.

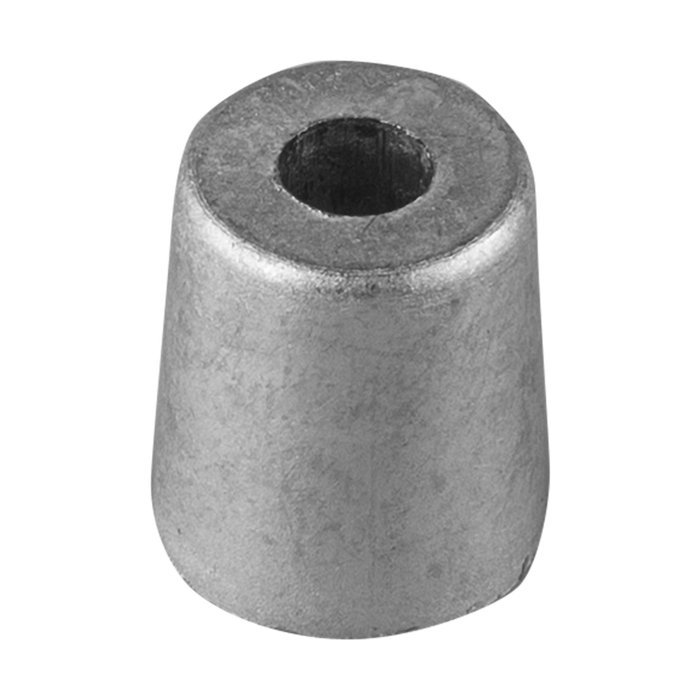

The anode features a compact, slightly tapered cylindrical body with a central through-hole. It measures 16 mm (0.63") in height (h), 13 mm (0.51") in outer diameter (Ø), 12 mm (0.47") in secondary diameter (Ø1) and 5.50 mm (0.22") in through-hole diameter (Ø2). Zinc, aluminium and magnesium versions are available, all sharing identical dimensions.
Technical Specifications
Manufacturer Tecnoseal Product Series 00844 Product Type Cylinder Crankcase Anode Application Mercury/Mariner Outboard Engines Original Part Number 6G8-11325-00 Catalogue Cross-References 01148, 01750 Available Materials Zinc, Aluminium, Magnesium Construction Cylindrical Body with Central Through-Hole
Available Versions
Tecnoseal Part Number Material Weight 00844 Zinc 0.010 kg (0.02 lbs) 00844AL Aluminium 0.006 kg (0.01 lbs) 00844MG Magnesium 0.004 kg (0.01 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Height (h) 16 mm (0.63") Outer Diameter (Ø) 13 mm (0.51") Secondary Diameter (Ø1) 12 mm (0.47") Through-Hole Diameter (Ø2) 5.50 mm (0.22")
Product Configurations
Tecnoseal 00844 – Zinc Mercury/Mariner Cylinder Crankcase Anode
- Material: Zinc
- Weight: 0.010 kg (10 g)
- Height: 16 mm
- Outer Diameter: 13 mm
- Secondary Diameter: 12 mm
- Through-Hole Diameter: 5.50 mm
- Original Part Number: 6G8-11325-00
Tecnoseal 00844AL – Aluminium Mercury/Mariner Cylinder Crankcase Anode
- Material: Aluminium
- Weight: 0.006 kg (6 g)
- Height: 16 mm
- Outer Diameter: 13 mm
- Secondary Diameter: 12 mm
- Through-Hole Diameter: 5.50 mm
- Original Part Number: 6G8-11325-00
Tecnoseal 00844MG – Magnesium Mercury/Mariner Cylinder Crankcase Anode
- Material: Magnesium
- Weight: 0.004 kg (4 g)
- Height: 16 mm
- Outer Diameter: 13 mm
- Secondary Diameter: 12 mm
- Through-Hole Diameter: 5.50 mm
- Original Part Number: 6G8-11325-00
Compatibility
- Engine Brand: Mercury/Mariner
- Application: Cylinder Crankcase Internal Anode
- Original Part Number: 6G8-11325-00
OEM and Catalogue Cross-References
- Original Part Number: 6G8-11325-00
- Additional Catalogue References: 01148, 01750
- Tecnoseal 00844: Zinc version
- Tecnoseal 00844AL: Aluminium version
- Tecnoseal 00844MG: Magnesium version
Key Features
- Small cylindrical anode for Mercury/Mariner engine applications.
- Designed for internal cylinder crankcase corrosion protection.
- Corresponds to original part number 6G8-11325-00.
- Available in zinc, aluminium and magnesium versions.
- Compact tapered cylindrical body with central through-hole.
- Height: 16 mm.
- Outer diameter: 13 mm.
- Secondary diameter: 12 mm.
- Through-hole diameter: 5.50 mm.
- Identical dimensions across all three versions.
- Zinc: Tecnoseal 00844, weight 10 g.
- Aluminium: Tecnoseal 00844AL, weight 6 g.
- Magnesium: Tecnoseal 00844MG, weight 4 g.
-
