Tecnoseal 879150A65 Mercury Zeus Pod Drive Trim Tab Anode

Name: Tecnoseal 879150A65 Mercury Zeus Pod Drive Trim Tab Anode
SKU: Tecnoseal 00843

ID 1404579

$ 96.93

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

2.12 kg
0.91 kg

The Tecnoseal 00843 Series is a sacrificial trim tab anode designed for Mercury Zeus Pod Drive propulsion systems, corresponding to OEM part number 879150A65. Available in zinc (00843), aluminium (00843AL) and magnesium (00843MG), it helps protect compatible submerged drive components against galvanic corrosion. The plate measures 160 mm (6.30") in length, 150 mm (5.91") in width and 16 mm (0.63") in height, with mounting dimensions i = 73 mm (2.87") and i1 = 114 mm (4.49") and M8 mounting threads. According to the Tecnoseal catalogue, two anodes are required per engine. The zinc version weighs 2.12 kg (4.67 lbs), aluminium 0.91 kg (2.01 lbs) and magnesium 0.53 kg (1.17 lbs) per anode. All three versions share identical dimensions.

Description
Ask a Question

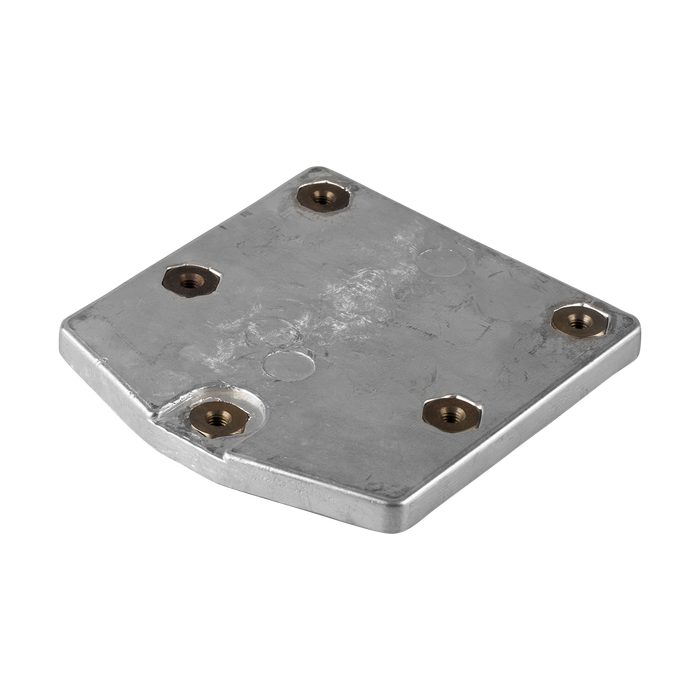

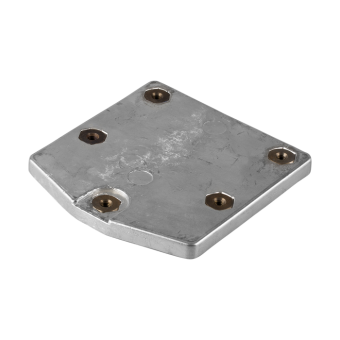

Tecnoseal 879150A65 Mercury Zeus Pod Drive Trim Tab Anode

The Tecnoseal 00843 Series consists of sacrificial trim tab anodes designed for Mercury Zeus Pod Drive propulsion systems. These anodes help protect compatible submerged metallic drive components against galvanic corrosion. The corresponding original part number is 879150A65.

The anode features a profiled plate design with multiple mounting points. It measures 160 mm (6.30") in length, 150 mm (5.91") in width and 16 mm (0.63") in height. Additional catalogue mounting dimensions are i = 73 mm (2.87") and i1 = 114 mm (4.49"), with M8 mounting threads. Zinc, aluminium and magnesium versions are available with identical dimensions. According to the manufacturer catalogue, two anodes are required per engine.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00843
Product Type	Pod Drive Trim Tab Anode
Application	Mercury Zeus Pod Drive
OEM Part Number	879150A65
Available Materials	Zinc, Aluminium, Magnesium
Quantity Required	2 anodes per engine
Mounting Thread	M8

Available Versions

Tecnoseal Part Number	Material	Weight per Anode
00843	Zinc	2.12 kg (4.67 lbs)
00843AL	Aluminium	0.91 kg (2.01 lbs)
00843MG	Magnesium	0.53 kg (1.17 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Length (l)	160 mm (6.30")
Width (a)	150 mm (5.91")
Height (h)	16 mm (0.63")
Mounting Dimension (i)	73 mm (2.87")
Mounting Dimension (i1)	114 mm (4.49")
Thread (m)	M8
