ID
1404595
$ 69.69
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 300 g
- 210 g
- 790 g
The Tecnoseal 00848 Series is a sacrificial anode plate designed for Mercury V6 and V8 marine engines, corresponding to original part number 8M0137814. Available in zinc (00848), aluminium (00848AL) and magnesium (00848MG), it helps protect compatible engine components against galvanic corrosion. The plate has a rectangular profile with rounded corners and two mounting points. It measures 140 mm (5.51") in length, 124 mm (4.88") in width and 21 mm (0.83") in height. The zinc version weighs 0.79 kg (1.74 lbs), aluminium 0.30 kg (0.66 lbs) and magnesium 0.21 kg (0.46 lbs). All three versions share identical dimensions.
- Description
- Ask a Question
-

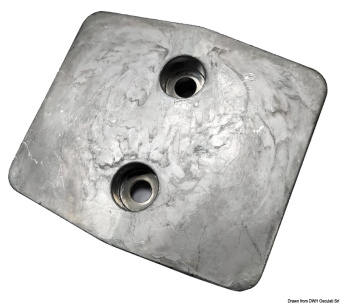

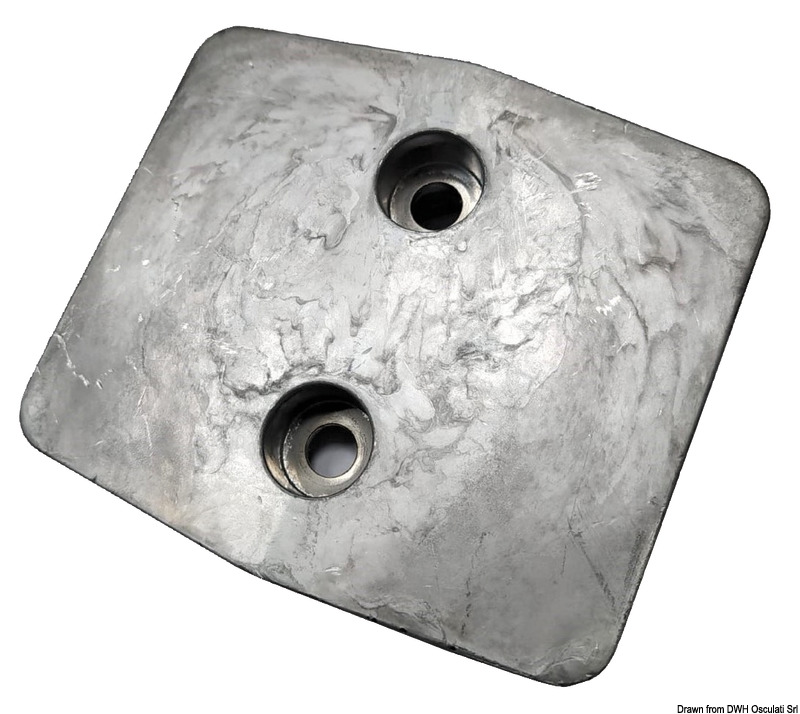

Tecnoseal 8M0137814 Mercury V6/V8 Engine Anode Plate
The Tecnoseal 00848 Series consists of sacrificial anode plates designed for Mercury V6 and V8 marine engines. These anodes help protect compatible metallic engine components against galvanic corrosion. The corresponding original part number is 8M0137814.
The anode has a rectangular plate design with rounded corners and two mounting points. It measures 140 mm (5.51") in length, 124 mm (4.88") in width and 21 mm (0.83") in height. Zinc, aluminium and magnesium versions are available with identical dimensions.
Technical Specifications
Manufacturer Tecnoseal Product Series 00848 Product Type Engine Anode Plate Engine Manufacturer Mercury Engine Application V6 / V8 Original Part Number 8M0137814 Available Materials Zinc, Aluminium, Magnesium Construction Profiled Plate with Two Mounting Points
Available Versions and Osculati Cross-References
Tecnoseal Part Number Material Osculati Reference Weight 00848 Zinc 43.434.50 0.79 kg (1.74 lbs) 00848AL Aluminium 43.436.50 0.30 kg (0.66 lbs) 00848MG Magnesium 43.438.50 0.21 kg (0.46 lbs)
Dimensions
Catalogue Dimension Measurement Length (l) 140 mm (5.51") Width (a) 124 mm (4.88") Height (h) 21 mm (0.83")
Product Configurations
Tecnoseal 00848 – Zinc Mercury V6/V8 Engine Anode Plate
- Material: Zinc
- Weight: 0.79 kg (1.74 lbs)
- Dimensions: 140 x 124 x 21 mm
- Engine Compatibility: Mercury V6 / V8
- Original Part Number: 8M0137814
- Osculati Reference: 43.434.50
Tecnoseal 00848AL – Aluminium Mercury V6/V8 Engine Anode Plate
- Material: Aluminium
- Weight: 0.30 kg (0.66 lbs)
- Dimensions: 140 x 124 x 21 mm
- Engine Compatibility: Mercury V6 / V8
- Original Part Number: 8M0137814
- Osculati Reference: 43.436.50
Tecnoseal 00848MG – Magnesium Mercury V6/V8 Engine Anode Plate
- Material: Magnesium
- Weight: 0.21 kg (0.46 lbs)
- Dimensions: 140 x 124 x 21 mm
- Engine Compatibility: Mercury V6 / V8
- Original Part Number: 8M0137814
- Osculati Reference: 43.438.50
Engine Compatibility
- Manufacturer: Mercury
- Engine Configuration: V6 / V8
- Application: Engine Anode Plate
- Original Part Number: 8M0137814
OEM and Product Cross-References
- Original Part Number: 8M0137814
- Tecnoseal 00848 (Zinc): Osculati 43.434.50
- Tecnoseal 00848AL (Aluminium): Osculati 43.436.50
- Tecnoseal 00848MG (Magnesium): Osculati 43.438.50
Key Features
- Anode plate for Mercury V6 and V8 marine engines.
- Corresponds to original part number 8M0137814.
- Available in zinc, aluminium and magnesium versions.
- Rectangular plate with rounded corners and two mounting points.
- Helps protect compatible metallic components against galvanic corrosion.
- Overall dimensions: 140 x 124 x 21 mm.
- Identical dimensions across all three versions.
- Zinc: Tecnoseal 00848 / Osculati 43.434.50 / 790 g.
- Aluminium: Tecnoseal 00848AL / Osculati 43.436.50 / 300 g.
- Magnesium: Tecnoseal 00848MG / Osculati 43.438.50 / 210 g.
-
