The Tecnoseal 00847 Series is a sacrificial power trim anode designed for Mercury Verado 350 PRO outboard motors, corresponding to OEM part number 8M0001734. Available in zinc (00847), aluminium (00847AL) and magnesium (00847MG), it helps protect compatible power trim components against galvanic corrosion. The profiled anode features two raised mounting points connected by a reinforced central section. It measures 109 mm (4.29") in length and 43 mm (1.69") in width, with mounting diameters Ø = 16 mm (0.63") and Ø1 = 7.50 mm (0.30"). The zinc version weighs 0.28 kg (280 g / 0.62 lbs), aluminium 0.11 kg (110 g / 0.24 lbs) and magnesium 0.07 kg (70 g / 0.15 lbs). All three versions share identical dimensions.
- Description
- Ask a Question
-
Tecnoseal 8M0001734 Mercury Verado 350 PRO Power Trim Anode
The Tecnoseal 00847 Series consists of sacrificial power trim anodes designed for Mercury Verado 350 PRO outboard motors. These anodes help protect compatible metallic components of the power trim system against galvanic corrosion. The corresponding original part number is 8M0001734.

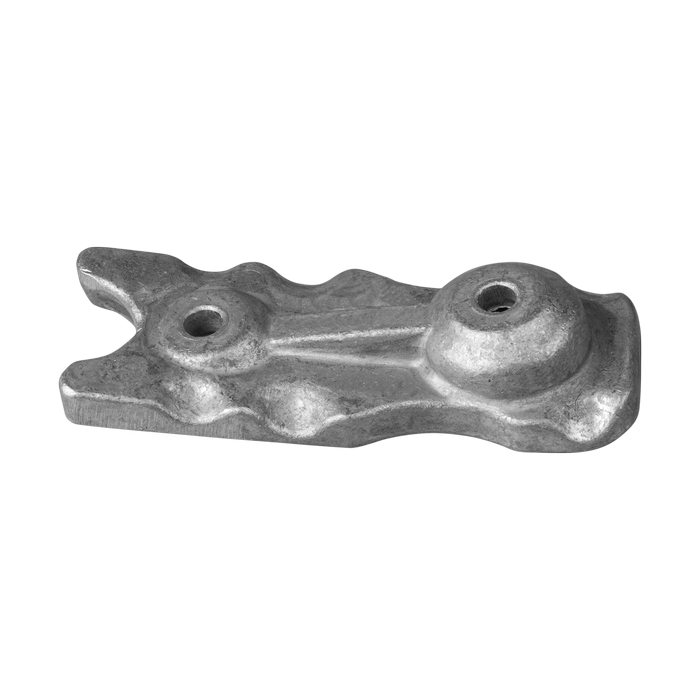

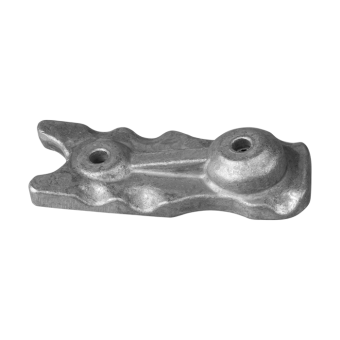

The anode features a profiled body with two raised mounting points connected by a reinforced central section. It measures 109 mm (4.29") in length and 43 mm (1.69") in width. The mounting diameters are Ø = 16 mm (0.63") and Ø1 = 7.50 mm (0.30"). Zinc, aluminium and magnesium versions are available with identical dimensions.
Technical Specifications
Manufacturer Tecnoseal Product Series 00847 Product Type Power Trim Anode Engine Manufacturer Mercury Engine Model Verado 350 PRO OEM Part Number 8M0001734 Available Materials Zinc, Aluminium, Magnesium
Available Versions and Osculati Cross-References
Tecnoseal Part Number Material Osculati Reference Weight 00847 Zinc 43.424.50 0.28 kg (0.62 lbs) 00847AL Aluminium 43.424.51 0.11 kg (0.24 lbs) 00847MG Magnesium 43.424.52 0.07 kg (0.15 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Length (l) 109 mm (4.29") Width (a) 43 mm (1.69") Diameter (Ø) 16 mm (0.63") Diameter (Ø1) 7.50 mm (0.30")
Product Configurations
Tecnoseal 00847 – Zinc Mercury Verado 350 PRO Power Trim Anode
- Material: Zinc
- Weight: 0.28 kg (0.62 lbs)
- Length: 109 mm
- Width: 43 mm
- Diameter (Ø): 16 mm
- Diameter (Ø1): 7.50 mm
- OEM Reference: 8M0001734
- Osculati Reference: 43.424.50
Tecnoseal 00847AL – Aluminium Mercury Verado 350 PRO Power Trim Anode
- Material: Aluminium
- Weight: 0.11 kg (0.24 lbs)
- Length: 109 mm
- Width: 43 mm
- Diameter (Ø): 16 mm
- Diameter (Ø1): 7.50 mm
- OEM Reference: 8M0001734
- Osculati Reference: 43.424.51
Tecnoseal 00847MG – Magnesium Mercury Verado 350 PRO Power Trim Anode
- Material: Magnesium
- Weight: 0.07 kg (0.15 lbs)
- Length: 109 mm
- Width: 43 mm
- Diameter (Ø): 16 mm
- Diameter (Ø1): 7.50 mm
- OEM Reference: 8M0001734
- Osculati Reference: 43.424.52
Engine Compatibility
- Manufacturer: Mercury
- Engine Model: Verado 350 PRO
- Application: Power Trim System
- OEM Part Number: 8M0001734
OEM and Catalogue Cross-References
- Original Part Number: 8M0001734
- Tecnoseal 00847 (Zinc): Osculati 43.424.50
- Tecnoseal 00847AL (Aluminium): Osculati 43.424.51
- Tecnoseal 00847MG (Magnesium): Osculati 43.424.52
Key Features
- Power trim anode for Mercury Verado 350 PRO outboard motors.
- Corresponds to OEM part number 8M0001734.
- Available in zinc, aluminium and magnesium versions.
- Profiled body with two raised mounting points.
- Helps protect power trim components against galvanic corrosion.
- Length: 109 mm.
- Width: 43 mm.
- Mounting diameters: Ø16 mm and Ø1 7.50 mm.
- Identical dimensions across all three versions.
- Zinc: Tecnoseal 00847 / Osculati 43.424.50 / 280 g.
- Aluminium: Tecnoseal 00847AL / Osculati 43.424.51 / 110 g.
- Magnesium: Tecnoseal 00847MG / Osculati 43.424.52 / 70 g.
-
