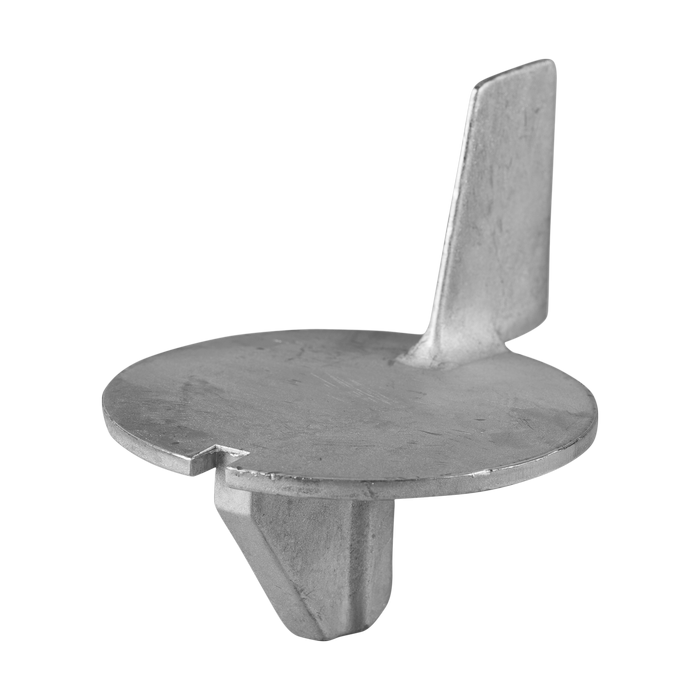

The Tecnoseal 00812 is a zinc trim tab anode designed for Mercury America 18–25 HP outboard motors manufactured from 1990 onwards, corresponding to OEM part number 984325. It provides sacrificial corrosion protection for compatible outboard motor components and features a circular base with an integrated trim tab fin and M8 mounting thread. According to the Tecnoseal catalogue, it measures 114 mm (4.49") in length (l), 53 mm (2.09") in height (h), 43 mm (1.69") in secondary height (h1) and 90 mm (3.54") in diameter (Ø). The zinc anode weighs 0.38 kg (380 g / 0.84 lbs).
- Description
- Ask a Question
-

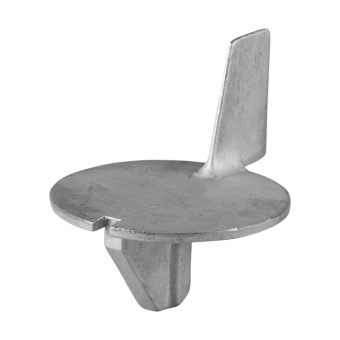

Tecnoseal 984325 Mercury America 18–25 HP Trim Tab Anode – Zinc
The Tecnoseal 00812 is a zinc sacrificial trim tab anode designed for Mercury America series outboard motors rated at 18–25 HP, manufactured from 1990 onwards. It helps protect compatible submerged metal components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding Mercury original part number is 984325.
The anode features a circular mounting base with an integrated trim tab fin. It measures 114 mm (4.49") in length, 53 mm (2.09") in height and 43 mm (1.69") in secondary height, with a circular base diameter of 90 mm (3.54"). The mounting thread is M8. The zinc anode weighs 0.38 kg (0.84 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 00812 (Osculati 43.426.10) Product Type Trim Tab Anode Material Zinc Application Mercury America Outboard Motors Engine Compatibility 18–25 HP (Since 1990) Mercury OEM Part Number 984325 Weight 0.38 kg (0.84 lbs) Mounting Thread M8
Dimensions and Mounting
Catalogue Dimension Measurement Length (l) 114 mm (4.49") Height (h) 53 mm (2.09") Secondary Height (h1) 43 mm (1.69") Diameter (Ø) 90 mm (3.54") Mounting Thread (m) M8
Engine Compatibility
- Manufacturer: Mercury
- Engine Series: America
- Power Range: 18–25 HP
- Production Years: Since 1990
OEM and Product References
- Mercury OEM Part Number: 984325
- Tecnoseal Part Number: 00812
Key Features
- Zinc trim tab anode for Mercury America 18–25 HP outboard motors.
- Compatible with the America series from 1990 onwards.
- Corresponds to Mercury OEM part number 984325.
- Circular mounting base with integrated trim tab fin.
- Provides sacrificial corrosion protection for compatible outboard motor components.
- Length: 114 mm.
- Height: 53 mm.
- Secondary height: 43 mm.
- Diameter: 90 mm.
- Mounting thread: M8.
- Weight: 380 g (0.84 lbs).
-
