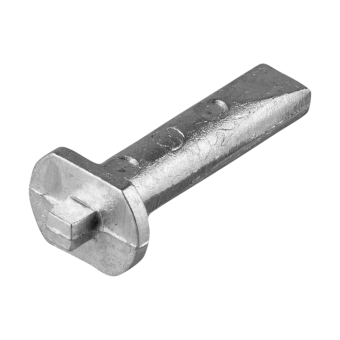

Tecnoseal 6J8-11325-00 Yamaha 20–250 HP Outboard Crankcase Cylinder Anode

ID 1405572

$ 30.57

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

20 g
4 g

The Tecnoseal 01150 series consists of small sacrificial internal engine anodes designed for Yamaha 20–250 HP outboard motors, corresponding to Yamaha OEM part number 6J8-11325-00. Each anode features an elongated tapered body with a circular mounting head and a square-profile opening, intended to help protect metallic crankcase and cylinder components against galvanic corrosion. According to the Tecnoseal catalogue, the anode measures 41 mm in overall length (l), 13 mm in height (h), with a mounting head diameter (Ø) of 16.5 mm and an 8 mm end diameter (Ø1). Additional profile dimensions are 4 mm (a) and 2 mm (b). Two material versions are available: zinc (Tecnoseal 01150, 20 g) and magnesium (Tecnoseal 01150MG, 4 g). Both versions share identical dimensions and mounting geometry. The same anode design is also listed under Tecnoseal catalogue reference 00831.

Description
Ask a Question

Tecnoseal 6J8-11325-00 Yamaha 20–250 HP Outboard Crankcase Cylinder Anode

The Tecnoseal 01150 series consists of small sacrificial internal engine anodes designed for Yamaha 20–250 HP outboard motors. Corresponding to Yamaha OEM part number 6J8-11325-00, these replacement anodes are intended for crankcase and cylinder applications, helping protect metallic engine components against galvanic corrosion.

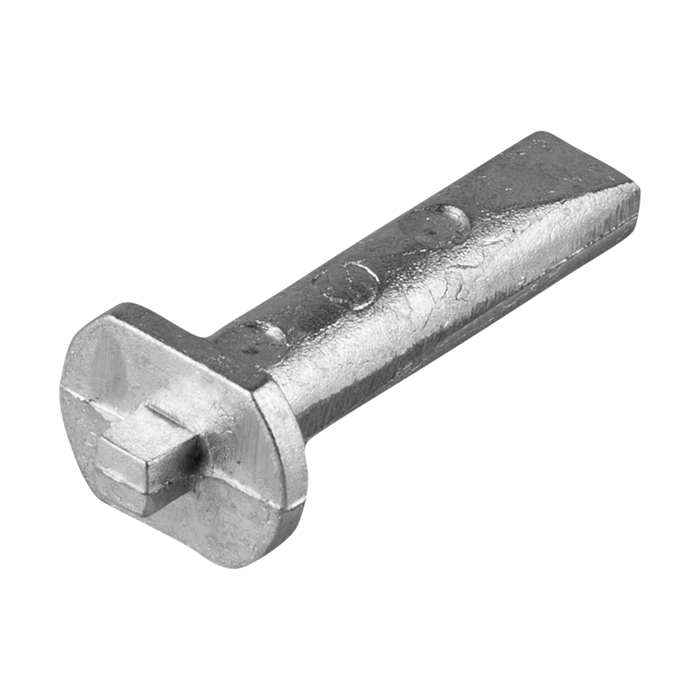

Each anode features an elongated tapered metal body extending from a circular mounting head. The head includes a square-profile opening, while the tapered section forms the sacrificial portion of the component. This compact configuration distinguishes the anode from conventional cylindrical pencil anodes and external trim tab anodes.

The sacrificial zinc or magnesium material gradually corrodes during service, helping reduce galvanic corrosion of surrounding protected metallic engine components. These anodes are replaceable maintenance parts and should be inspected according to the Yamaha engine manufacturer's service recommendations.

According to the Tecnoseal catalogue, the anode measures 41 mm (1.61 in) in overall length (l) and 13 mm (0.51 in) in height (h). The mounting head has an outside diameter (Ø) of 16.5 mm (0.65 in), while the end diameter (Ø1) is 8 mm (0.31 in). Additional mounting-profile dimensions are 4 mm (0.16 in) for a and 2 mm (0.08 in) for b. Both material versions have identical dimensions.

Two versions are available. The zinc version, Tecnoseal 01150, weighs 0.02 kg (0.04 lbs). The magnesium version, Tecnoseal 01150MG, weighs 0.004 kg (0.01 lbs). The appropriate sacrificial anode material should be selected according to the engine manufacturer's requirements and the vessel's operating water conditions.

The same anode design is also listed under Tecnoseal catalogue reference 00831. This additional reference can assist in identifying the corresponding replacement component when comparing catalogue listings or existing engine anodes.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Internal Engine Sacrificial Anode
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Outboards	20–250 HP
Yamaha OEM Reference	6J8-11325-00
Available Materials	Zinc, Magnesium
Construction	Elongated tapered body with circular mounting head
Mounting Configuration	Circular head with square-profile opening
Alternative Tecnoseal Reference	00831

Available Versions

Tecnoseal Code	Material	Weight	EAN
01150 (Osculati 43.260.14)	Zinc	0.02 kg (0.04 lbs)	8033837065555
01150MG	Magnesium	0.004 kg (0.01 lbs)	8058774838406

Dimensions and Mounting Specifications

Overall Length (l)	41 mm (1.61 in)
Dimension (a)	4 mm (0.16 in)
Dimension (b)	2 mm (0.08 in)
Height (h)	13 mm (0.51 in)
Mounting Head Diameter (Ø)	16.5 mm (0.65 in)
End Diameter (Ø1)	8 mm (0.31 in)

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 20–250 HP
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 6J8-11325-00
Zinc Version: Tecnoseal 01150
Magnesium Version: Tecnoseal 01150MG
Alternative Tecnoseal Reference: 00831

Key Features

Designed for compatible Yamaha 20–250 HP outboard motors.
Corresponds to Yamaha OEM part number 6J8-11325-00.
Compact internal sacrificial anode for crankcase and cylinder applications.
Elongated tapered body with circular mounting head.
Square-profile opening in the mounting section.
Helps protect metallic engine components against galvanic corrosion.
Available in zinc and magnesium versions.
Overall length: 41 mm.
Height: 13 mm.
Mounting head diameter: 16.5 mm.
End diameter: 8 mm.
Identical dimensions and mounting geometry for both versions.
Additional Tecnoseal catalogue reference: 00831.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 6J8-11325-00 and existing anode dimensions. Compare the elongated body, circular mounting head and square-profile opening with the original component. Select the appropriate sacrificial anode material according to the engine manufacturer's specifications.
