Tecnoseal 6E5-11325-00 Yamaha 6–350 HP Outboard Crankcase Cylinder Anode

ID 1405579

$ 11.14

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

10 g
3 g

The Tecnoseal 01152 series consists of small sacrificial internal engine anodes designed for Yamaha 6–350 HP outboard motors, corresponding to Yamaha OEM part number 6E5-11325-00. Each anode features a compact wedge-shaped body with a recessed central mounting hole and raised sections at both ends, helping protect metallic components in the crankcase and cylinder assembly against corrosion. The anode measures 27 mm in overall length (l), 14 mm across the narrower central section (l1), 10 mm in height (h) and 5 mm in mounting-hole diameter (Ø). Three material versions are available: zinc (Tecnoseal 01152, 10 g), aluminium (Tecnoseal 01152AL, 4 g) and magnesium (Tecnoseal 01152MG, 3 g). All versions share identical dimensions and mounting geometry. The catalogue also lists Tecnoseal 01753 as an alternative reference for this anode design.

Description
Ask a Question

Tecnoseal 6E5-11325-00 Yamaha 6–350 HP Outboard Crankcase Cylinder Anode

The Tecnoseal 01152 series consists of small sacrificial internal engine anodes designed for Yamaha 6–350 HP outboard motors. Corresponding to Yamaha OEM part number 6E5-11325-00, these replacement anodes are intended for crankcase and cylinder applications, helping protect metallic engine components against galvanic corrosion.

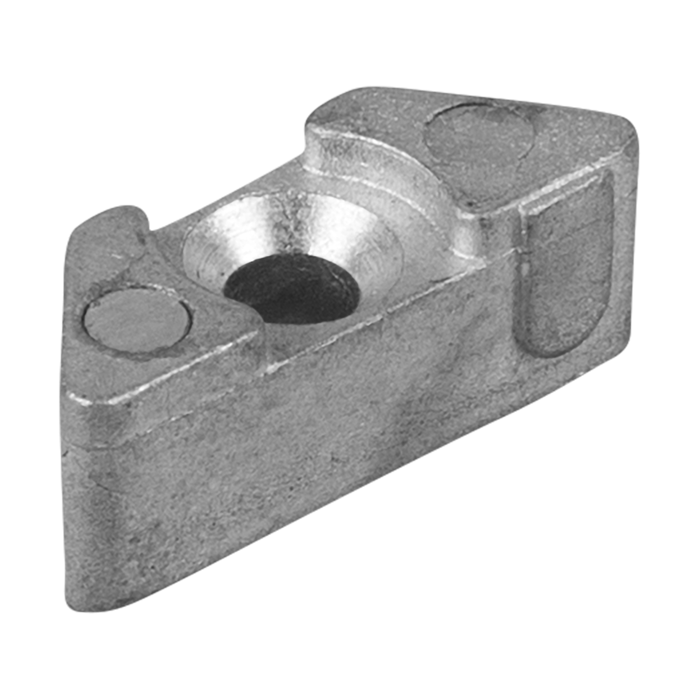

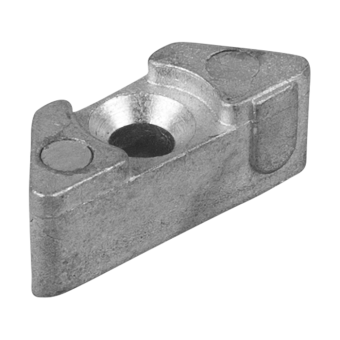

Each anode features a compact wedge-shaped metal body with inclined sides, raised sections at both ends and a recessed central mounting hole. The distinctive shape corresponds to the original mounting arrangement illustrated in the Tecnoseal catalogue. Unlike conventional cylindrical pencil anodes, this component uses a shaped body with a central fastening opening.

The anode serves as a sacrificial corrosion protection component. During operation, the zinc, aluminium or magnesium body gradually corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic engine parts. These small internal anodes are replaceable maintenance components and should be inspected according to the Yamaha engine manufacturer's service recommendations.

According to the Tecnoseal catalogue, the anode measures 27 mm (1.06 in) in overall length (l), 14 mm (0.55 in) across the central section (l1) and 10 mm (0.39 in) in height (h). The central mounting-hole diameter (Ø) is 5 mm (0.20 in). All three material versions share identical dimensions and mounting geometry.

Three versions are available. The zinc version, Tecnoseal 01152, weighs 0.01 kg (0.02 lbs). The aluminium version, Tecnoseal 01152AL, weighs 0.004 kg (0.01 lbs), while the magnesium version, Tecnoseal 01152MG, weighs 0.003 kg (0.01 lbs). The suitable sacrificial anode material should be selected according to the engine manufacturer's requirements and operating water conditions.

The catalogue also lists Tecnoseal reference 01753 as an alternative reference for this anode design. This additional reference may assist in identifying the corresponding replacement when comparing catalogue listings or existing Yamaha engine components.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Internal Engine Sacrificial Anode
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Outboards	6–350 HP
Yamaha OEM Reference	6E5-11325-00
Available Materials	Zinc, Aluminium, Magnesium
Construction	Wedge-shaped body with recessed central mounting hole
Mounting Configuration	Central through-hole, 5 mm diameter
Alternative Tecnoseal Reference	01753

Available Versions

Tecnoseal Code	Material	Weight	EAN
01152 (Osculati 43.260.13)	Zinc	0.01 kg (0.02 lbs)	8033837065579
01152AL	Aluminium	0.004 kg (0.01 lbs)	8052530706824
01152MG	Magnesium	0.003 kg (0.01 lbs)	8052744983769

Dimensions and Mounting Specifications

Overall Length (l)	27 mm (1.06 in)
Central Section Dimension (l1)	14 mm (0.55 in)
Height (h)	10 mm (0.39 in)
Mounting-Hole Diameter (Ø)	5 mm (0.20 in)

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 6–350 HP
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 6E5-11325-00
Zinc Version: Tecnoseal 01152
Aluminium Version: Tecnoseal 01152AL
Magnesium Version: Tecnoseal 01152MG
Alternative Tecnoseal Reference: 01753

Key Features

Designed for compatible Yamaha 6–350 HP outboard motors.
Corresponds to Yamaha OEM part number 6E5-11325-00.
Compact internal sacrificial anode for crankcase and cylinder applications.
Wedge-shaped body with inclined sides and raised end sections.
Recessed central fastening hole with 5 mm diameter.
Helps protect metallic engine components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall length: 27 mm.
Central section dimension: 14 mm.
Height: 10 mm.
Identical dimensions and mounting geometry for all three versions.
Additional Tecnoseal catalogue reference: 01753.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 6E5-11325-00 and original anode dimensions. Compare the wedge-shaped body, central mounting hole and overall dimensions with the existing component. Select the appropriate sacrificial anode material according to the engine manufacturer's specifications.
