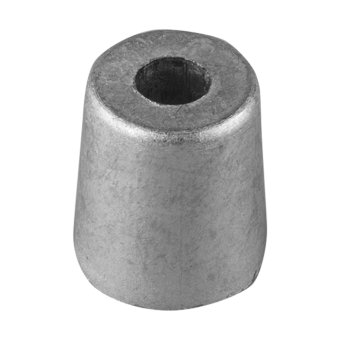

Tecnoseal 6G8-11325-00 Yamaha 4–70 HP Outboard Crankcase Cylinder Anode

ID 1405565

$ 13.91

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

10 g
4 g
6 g

The Tecnoseal 01148 series consists of small cylindrical sacrificial anodes designed for Yamaha 4–70 HP outboard engines, corresponding to Yamaha OEM part number 6G8-11325-00. Intended for internal crankcase and cylinder applications, each anode features a slightly tapered cylindrical body with an axial mounting hole, helping protect metallic engine components against corrosion. The anode measures 16 mm in height (h), 13 mm in maximum outside diameter (Ø), 12 mm in secondary outside diameter (Ø1) and 5.50 mm in through-hole diameter (Ø2). Three material versions are available: zinc (Tecnoseal 01148, 10 g), aluminium (Tecnoseal 01148AL, 6 g) and magnesium (Tecnoseal 01148MG, 4 g). All versions share identical dimensions and mounting geometry. The catalogue also lists references 00844, 01750 and 01408-2 as alternative anode references for this design.

Description
Ask a Question

Tecnoseal 6G8-11325-00 Yamaha 4–70 HP Outboard Crankcase Cylinder Anode

The Tecnoseal 01148 series consists of small cylindrical sacrificial anodes designed for Yamaha 4–70 HP outboard engines. Corresponding to Yamaha OEM part number 6G8-11325-00, these replacement anodes are intended for internal crankcase and cylinder applications, helping protect metallic engine components against corrosion.

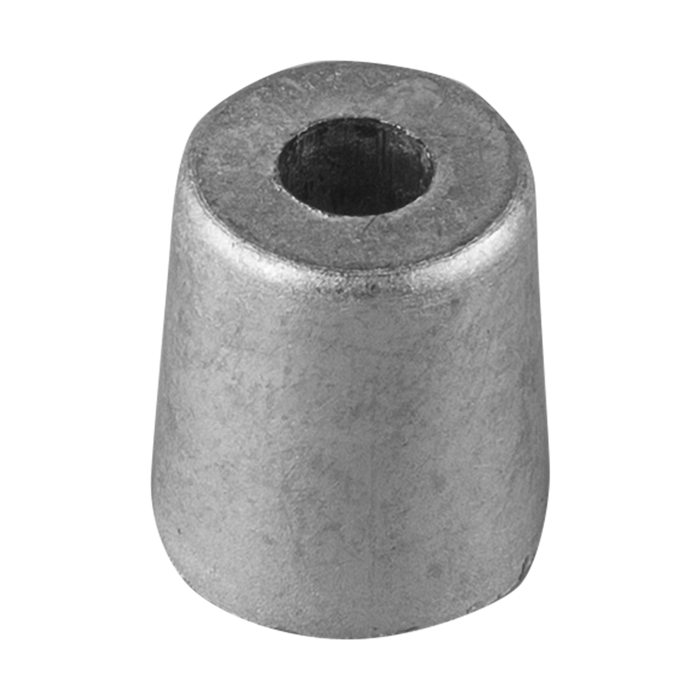

Each anode features a compact, slightly tapered cylindrical body with an axial through-hole. The body has a wider outside diameter at one end and a slightly smaller outside diameter at the other, creating the profile shown in the Tecnoseal catalogue drawing. The central opening provides the fastening arrangement for installation in the corresponding Yamaha engine location.

The anode functions as a sacrificial corrosion protection component. During service, its zinc, aluminium or magnesium body gradually corrodes preferentially, helping reduce corrosion of surrounding protected metallic engine parts. These anodes are replaceable maintenance components and should be inspected according to the engine manufacturer's maintenance recommendations.

According to the Tecnoseal catalogue, the anode measures 16 mm (0.63 in) in height (h), 13 mm (0.51 in) in maximum outside diameter (Ø) and 12 mm (0.47 in) in secondary outside diameter (Ø1). The central through-hole diameter (Ø2) is 5.50 mm (0.22 in). These dimensions are identical for all three available material versions.

Three versions are available. The zinc version, Tecnoseal 01148, weighs 0.01 kg (0.02 lbs). The aluminium version, Tecnoseal 01148AL, weighs 0.006 kg (0.01 lbs), while the magnesium version, Tecnoseal 01148MG, weighs 0.004 kg (0.01 lbs). The appropriate sacrificial material should be selected according to the engine manufacturer's requirements and the vessel's operating water conditions.

The catalogue also identifies references 00844, 01750 and 01408-2 as alternative references for this anode design. These references can assist in identifying the correct replacement when comparing Tecnoseal catalogue listings and existing engine components.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Internal Engine Sacrificial Anode
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Outboards	4–70 HP
Yamaha OEM Reference	6G8-11325-00
Available Materials	Zinc, Aluminium, Magnesium
Construction	Slightly tapered cylindrical body
Mounting Configuration	Central axial through-hole
Additional Catalogue References	00844, 01750, 01408-2

Available Versions

Tecnoseal Code	Material	Weight	EAN
01148 (Osculati 43.260.12)	Zinc	0.01 kg (0.02 lbs)	8033837065531
01148AL	Aluminium	0.006 kg (0.01 lbs)	8059617818418
01148MG	Magnesium	0.004 kg (0.01 lbs)	8052744984698

Dimensions and Mounting Specifications

Height (h)	16 mm (0.63 in)
Maximum Outside Diameter (Ø)	13 mm (0.51 in)
Secondary Outside Diameter (Ø1)	12 mm (0.47 in)
Through-Hole Diameter (Ø2)	5.50 mm (0.22 in)

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 4–70 HP
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 6G8-11325-00
Zinc Version: Tecnoseal 01148
Aluminium Version: Tecnoseal 01148AL
Magnesium Version: Tecnoseal 01148MG
Additional Catalogue References: 00844, 01750, 01408-2

Key Features

Designed for compatible Yamaha 4–70 HP outboard engines.
Corresponds to Yamaha OEM part number 6G8-11325-00.
Compact internal sacrificial anode for crankcase and cylinder applications.
Slightly tapered cylindrical body with an axial mounting hole.
Helps protect metallic engine components against corrosion.
Available in zinc, aluminium and magnesium versions.
Overall height: 16 mm.
Maximum outside diameter: 13 mm.
Secondary outside diameter: 12 mm.
Central through-hole diameter: 5.50 mm.
Identical dimensions and mounting geometry for all three material versions.
Additional catalogue references: 00844, 01750 and 01408-2.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 6G8-11325-00 and existing anode dimensions. Compare the tapered cylindrical body, outside diameters and 5.50 mm central through-hole with the original component. Select the appropriate sacrificial anode material according to the engine manufacturer's requirements.
