Tecnoseal 688-11325-00 Yamaha 40–90 HP Outboard Crankcase Cylinder Anode

Name: Tecnoseal 688-11325-00 Yamaha 40–90 HP Outboard Crankcase Cylinder Anode
SKU: Tecnoseal 01147

ID 1405562

$ 13.57

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

10 g
3 g

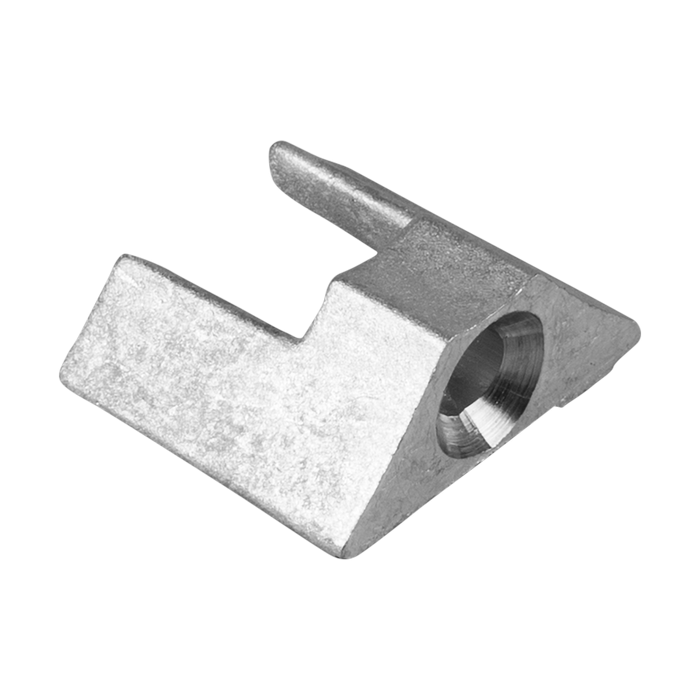

The Tecnoseal 01147 series consists of small sacrificial internal engine anodes designed for Yamaha 40–90 HP outboard motors, corresponding to Yamaha OEM part number 688-11325-00. Each anode features a compact, shaped metal body with a U-shaped recess, an angled mounting section and a 5 mm fastening hole, intended to protect metallic components in the engine crankcase and cylinder assembly against corrosion. The anode measures 23 mm in overall length (l), 20 mm in height (h), with an additional dimension (l1) of 7 mm and a 5 mm mounting-hole diameter (Ø). Two material versions are available: zinc (Tecnoseal 01147, 10 g) and magnesium (Tecnoseal 01147MG, 3 g). Both versions share the same dimensions and mounting geometry. The same anode design is also listed under Tecnoseal catalogue reference 01759.

Description
Ask a Question

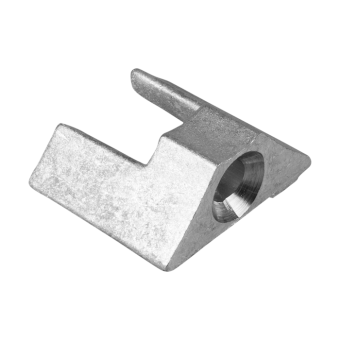

Tecnoseal 688-11325-00 Yamaha 40–90 HP Outboard Crankcase Cylinder Anode

The Tecnoseal 01147 series consists of small sacrificial internal engine anodes designed for Yamaha 40–90 HP outboard motors. Corresponding to Yamaha OEM part number 688-11325-00, these replacement anodes are intended for crankcase and cylinder applications, helping protect metallic engine components against corrosion.

Each anode features a compact, shaped metal body with an open U-shaped recess and an angled mounting section. The body incorporates a 5 mm fastening hole, while the surrounding metal profile provides the sacrificial material. The unusual shape and mounting arrangement distinguish this component from conventional cylindrical pencil anodes and external lower-unit anodes.

The anode is designed to act as a replaceable sacrificial corrosion protection component. During service, the zinc or magnesium material gradually corrodes preferentially, helping reduce corrosion of surrounding protected metallic engine parts.

According to the Tecnoseal catalogue, the anode measures 23 mm (0.91 in) in overall length (l) and 20 mm (0.79 in) in height (h). The additional dimension (l1) is 7 mm (0.28 in), and the mounting-hole diameter (Ø) is 5 mm (0.20 in). Both material versions have the same dimensions and mounting configuration.

Two versions are available. The zinc version, Tecnoseal 01147, weighs 0.01 kg (0.02 lbs). The magnesium version, Tecnoseal 01147MG, weighs 0.003 kg (0.01 lbs). The appropriate material should be selected according to the engine manufacturer's maintenance requirements and operating water conditions.

The same anode design is also listed under Tecnoseal catalogue reference 01759. This additional reference may assist in identifying the corresponding replacement when comparing manufacturer catalogue listings.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Internal Engine Sacrificial Anode
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Outboards	40–90 HP
Yamaha OEM Reference	688-11325-00
Available Materials	Zinc, Magnesium
Construction	Shaped body with U-shaped recess and angled mounting section
Mounting Configuration	5 mm fastening hole
Alternative Tecnoseal Reference	01759

Available Versions

Tecnoseal Code	Material	Weight	EAN
01147	Zinc	0.01 kg (0.02 lbs)	8033837065524
01147MG	Magnesium	0.003 kg (0.01 lbs)	8052744983738

Dimensions and Mounting Specifications

Overall Length (l)	23 mm (0.91 in)
Dimension (l1)	7 mm (0.28 in)
Height (h)	20 mm (0.79 in)
Fastening-Hole Diameter (Ø)	5 mm (0.20 in)

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 40–90 HP
Application: Internal crankcase and cylinder anode
Yamaha OEM Part Number: 688-11325-00
Zinc Version: Tecnoseal 01147
Magnesium Version: Tecnoseal 01147MG
Alternative Tecnoseal Reference: 01759

Key Features

Designed for compatible Yamaha 40–90 HP outboard motors.
Corresponds to Yamaha OEM part number 688-11325-00.
Compact internal sacrificial anode for crankcase and cylinder applications.
Shaped metal body with open U-shaped recess.
Angled mounting section with 5 mm fastening hole.
Helps protect metallic engine components against corrosion.
Available in zinc and magnesium versions.
Overall length: 23 mm.
Overall height: 20 mm.
Additional catalogue dimension: 7 mm.
Identical dimensions and mounting geometry for both material versions.
Additional Tecnoseal catalogue reference: 01759.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 688-11325-00 and existing anode dimensions. Compare the U-shaped recess, body profile and 5 mm mounting-hole arrangement with the original component. Select the appropriate sacrificial anode material according to the engine manufacturer's specifications.
