ID
1404275
$ 47.05
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 60 g
- 90 g
- 220 g
The Tecnoseal Johnson-Evinrude Trim Tab Anode is a sacrificial anode designed for Johnson and Evinrude 60–140 HP outboard motors, corresponding to original OEM part number 5032929 and additional Tecnoseal catalogue reference 01215. Available in zinc (00927), aluminium (00927AL) and magnesium (00927MG), all three versions feature a circular trim tab body with an integrated fin, measuring 85 mm in body diameter, 113 mm in overall length and 59 mm in height. The central mounting hole diameter is 8.5 mm. The zinc version weighs 0.22 kg (0.49 lbs), the aluminium version 0.09 kg (0.20 lbs) and the magnesium version 0.06 kg (0.13 lbs).
- Description
- Ask a Question
-
Tecnoseal 5032929 Johnson-Evinrude Trim Tab Anode for 60–140 HP Outboards
The Tecnoseal Johnson-Evinrude Trim Tab Anode is a sacrificial anode designed for Johnson and Evinrude outboard motors rated from 60 to 140 HP. It corresponds to original OEM part number 5032929 and is also listed in the Tecnoseal catalogue as "same as 01215". The anode is available in zinc, aluminium and magnesium versions for corrosion protection of compatible outboard motor components.

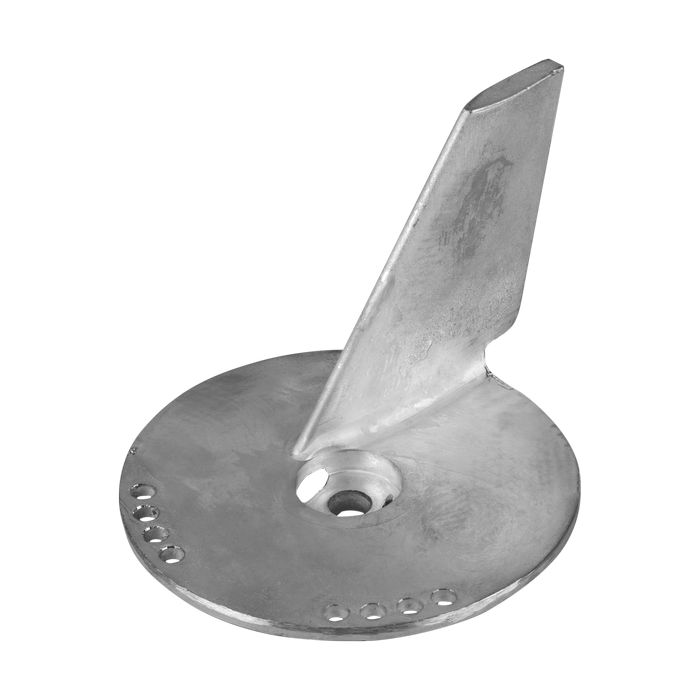

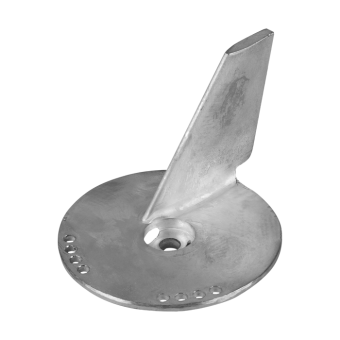

The anode features a circular body with an integrated vertical trim fin and a central mounting hole. All three versions share the same dimensions: 113 mm in overall length, 59 mm in height and 85 mm in circular body diameter. The mounting hole diameter is 8.5 mm. The mounting configuration and dimensions remain identical across all material versions, while the weight varies according to the selected material.
Technical Specifications
Manufacturer Tecnoseal Product Type Trim Tab Anode OEM Reference Johnson-Evinrude 5032929 Additional Tecnoseal Reference 01215 Engine Compatibility Johnson-Evinrude 60–140 HP Outboards Available Materials Zinc, Aluminium, Magnesium Mounting Hole Diameter 8.5 mm
Available Versions
Tecnoseal Part Number Material Weight 00927 (Osculati 43.272.85) Zinc 0.22 kg (0.49 lbs) 00927AL Aluminium 0.09 kg (0.20 lbs) 00927MG Magnesium 0.06 kg (0.13 lbs)
Dimensions
Dimension Measurement Overall Length (l) 113 mm (4.45") Height (h) 59 mm (2.32") Body Diameter (Ø) 85 mm (3.35") Mounting Hole Diameter (Ø1) 8.5 mm (0.33")
Key Features
- Sacrificial trim tab anode for Johnson-Evinrude outboard motors.
- Designed for Johnson and Evinrude 60–140 HP applications.
- Corresponds to original OEM part number 5032929.
- Additional Tecnoseal catalogue reference: 01215.
- Available in zinc, aluminium and magnesium versions.
- Circular anode body with an integrated vertical trim fin.
- Overall length: 113 mm; height: 59 mm.
- Circular body diameter: 85 mm.
- Central mounting hole diameter: 8.5 mm.
- Weights: 220 g (zinc), 90 g (aluminium) and 60 g (magnesium).
-
