Tecnoseal 5034616 / 5030907 Johnson-Evinrude Stern Bracket Anode for 60-225 HP 4-Stroke Outboards

ID 1404271

$ 57.45

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

200 g
130 g
510 g

The Tecnoseal Johnson-Evinrude Stern Bracket Anode is a sacrificial anode designed for Johnson and Evinrude 60–225 HP four-stroke outboard motors, corresponding to OEM part numbers 5034616 and 5030907. The Tecnoseal catalogue also lists references 00840, 01214 and 01254 as equivalent. Available in zinc (00926), aluminium (00926AL) and magnesium (00926MG), all versions measure 196 × 40 × 14 mm, with mounting dimensions of 176 mm (i) and 160 mm (i1), 6.5 × 11 mm slots and specified hole diameters of 6.5 mm and 12 mm. The zinc version weighs 0.51 kg (1.12 lbs), the aluminium version 0.20 kg (0.44 lbs) and the magnesium version 0.13 kg (0.29 lbs).

Description
Ask a Question

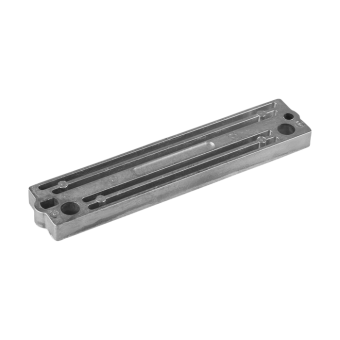

Tecnoseal 5034616 / 5030907 Johnson-Evinrude Stern Bracket Anode for 60–225 HP 4-Stroke Outboards

The Tecnoseal Johnson-Evinrude Stern Bracket Anode is a sacrificial anode designed for corrosion protection of stern bracket components on compatible Johnson and Evinrude four-stroke outboard motors rated from 60 to 225 HP. It corresponds to original OEM part numbers 5034616 and 5030907. The Tecnoseal catalogue also lists the product as "same as 00840 - 01214 - 01254". Three material versions are available: zinc, aluminium and magnesium.

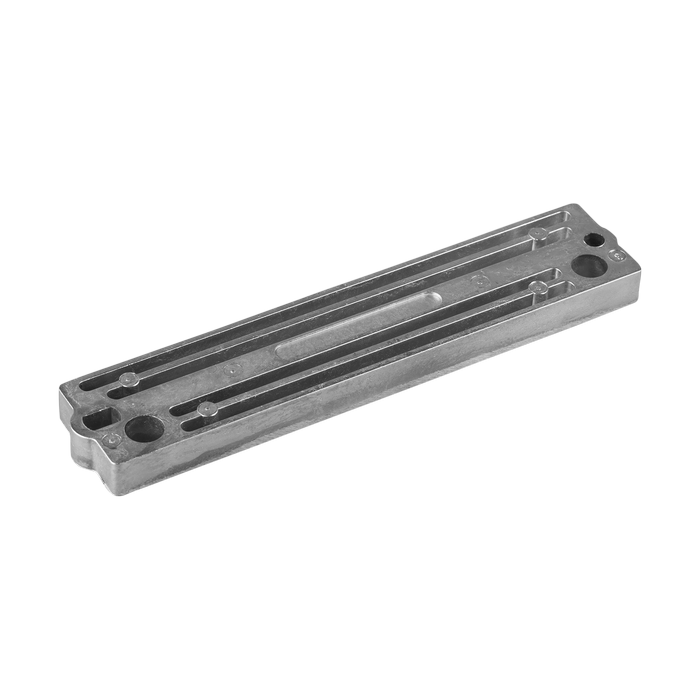

The anode features an elongated rectangular body with mounting holes and slotted openings near the ends. All three versions share the same overall dimensions of 196 mm in length, 40 mm in width and 14 mm in height. The catalogue specifies mounting dimensions of 176 mm (i) and 160 mm (i1), slot dimensions of 6.5 × 11 mm and hole diameters of 6.5 mm and 12 mm. The dimensions remain identical across all material versions, while the weight varies according to the selected material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Stern Bracket Anode
OEM References	Johnson-Evinrude 5034616 / 5030907
Additional Tecnoseal References	00840 / 01214 / 01254
Engine Compatibility	Johnson-Evinrude 60–225 HP
Engine Type	4-Stroke
Available Materials	Zinc, Aluminium, Magnesium

Available Versions

Tecnoseal Part Number	Material	Weight
00926	Zinc	0.51 kg (1.12 lbs)
00926AL	Aluminium	0.20 kg (0.44 lbs)
00926MG	Magnesium	0.13 kg (0.29 lbs)

Dimensions

Dimension	Measurement
Overall Length (l)	196 mm (7.72")
Width (a)	40 mm (1.57")
Slot Dimensions (b)	6.5 × 11 mm (0.26" × 0.43")
Height (h)	14 mm (0.55")
Mounting Dimension (i)	176 mm (6.93")
Mounting Dimension (i1)	160 mm (6.30")
Hole Diameter (Ø)	6.5 mm (0.26")
Hole Diameter (Ø1)	12 mm (0.47")

Key Features

Sacrificial anode for Johnson-Evinrude outboard stern bracket components.
Designed for 60–225 HP four-stroke outboard motors.
Corresponds to OEM part numbers 5034616 and 5030907.
Additional Tecnoseal catalogue references: 00840, 01214 and 01254.
Available in zinc, aluminium and magnesium versions.
Elongated rectangular body with mounting holes and slotted openings.
Identical overall dimensions across all material versions: 196 × 40 × 14 mm.
Mounting dimensions: 176 mm and 160 mm.
Slot dimensions: 6.5 × 11 mm.
Specified hole diameters: 6.5 mm and 12 mm.
