The Tecnoseal 00921 is a zinc sacrificial engine plate anode designed for Johnson and Evinrude 8 HP, 9.9 HP and 15 HP four-stroke outboard motors, corresponding to original OEM part number 338635. It measures 37 mm in length, 26 mm in width and 12 mm in height, with an additional profile dimension (c) of 10 mm and a 5.5 mm mounting hole diameter. Weighing 0.06 kg (0.13 lbs), the anode features a shaped rectangular plate with a central mounting hole. It is sold individually, with two anodes required per engine installation.
- Description
- Ask a Question
-
Tecnoseal 338635 Zinc Johnson-Evinrude Engine Plate Anode for 8–15 HP 4-Stroke Outboards
The Tecnoseal 00921 is a zinc sacrificial engine plate anode designed for Johnson and Evinrude four-stroke outboard motors rated at 8 HP, 9.9 HP and 15 HP. It corresponds to original OEM part number 338635 and provides sacrificial corrosion protection for compatible outboard engine components.

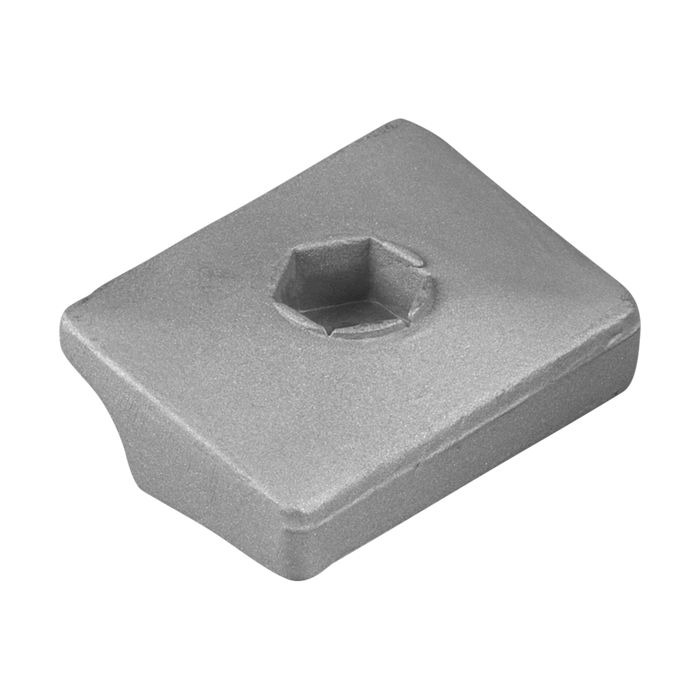

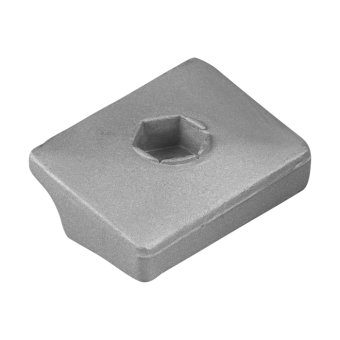

The anode features a compact rectangular plate with a shaped, raised profile and a central mounting hole. It measures 37 mm in length, 26 mm in width and 12 mm in overall height. An additional profile dimension (c) is 10 mm, while the mounting hole diameter is 5.5 mm. The zinc anode weighs 0.06 kg (0.13 lbs).
Important: The anode is sold individually. Two pieces are required per engine installation, according to the Tecnoseal catalogue.
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 00921 (Osculati 43.315.30) OEM Reference Johnson-Evinrude 338635 Product Type Engine Plate Anode Material Zinc Engine Compatibility Johnson-Evinrude 8 / 9.9 / 15 HP Engine Type 4-Stroke Quantity Supplied 1 Piece Quantity Required 2 Pieces per Engine Weight 0.06 kg (0.13 lbs)
Dimensions
Dimension Measurement Length (l) 37 mm (1.46") Width (a) 26 mm (1.02") Profile Dimension (c) 10 mm (0.39") Height (h) 12 mm (0.47") Mounting Hole Diameter (Ø) 5.5 mm (0.22")
Key Features
- Zinc sacrificial plate anode for Johnson-Evinrude four-stroke outboard engines.
- Compatible with 8 HP, 9.9 HP and 15 HP applications.
- Corresponds to original OEM part number 338635.
- Compact rectangular body with a shaped profile and central mounting hole.
- Overall dimensions: 37 × 26 × 12 mm.
- Additional profile dimension: 10 mm.
- Mounting hole diameter: 5.5 mm.
- Sold individually; two anodes required per engine.
- Weight per anode: 60 g.
-
