$ 63.55
1-2 weeks delivery time
-
+
The Tecnoseal 01909 is a zinc sacrificial bar anode designed for Selva S601 marine engines, corresponding to OEM part number 2504015. It features an elongated rectangular body with two mounting holes and longitudinal grooves, measuring 201 mm in length (l), 30 mm in width (a) and 14 mm in height (h). The mounting hole centre spacing (i) is 183 mm, with a hole diameter (Ø) of 6.50 mm. Weighing 0.40 kg (0.88 lbs), the anode helps protect compatible metallic engine components against galvanic corrosion.
- Description
- Ask a Question
-

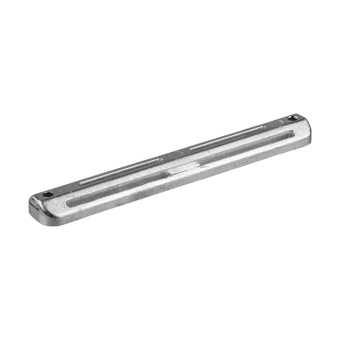

Tecnoseal 2504015 Selva S601 Zinc Engine Bar Anode 201x30x14 mm
The Tecnoseal 01909 is a zinc sacrificial bar anode designed for Selva S601 marine engines. It corresponds to Selva OEM part number 2504015 and helps protect compatible metallic engine components against galvanic corrosion.

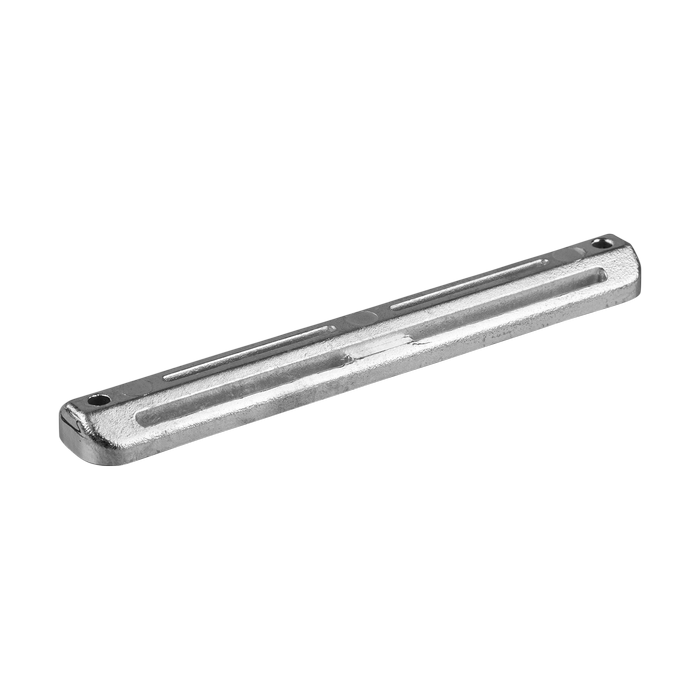

The anode features an elongated rectangular body with rounded ends, longitudinal grooves and two mounting holes. It measures 201 mm in overall length, 30 mm in width and 14 mm in height. The mounting hole centre spacing is 183 mm, with a hole diameter of 6.50 mm. Its weight is 0.40 kg (0.88 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 01909 Product Type Engine Bar Anode Material Zinc Engine Brand Selva Compatible Model S601 OEM Part Number 2504015 Weight 0.40 kg (0.88 lbs) Overall Length (l) 201 mm (7.91 in) Width (a) 30 mm (1.18 in) Height (h) 14 mm (0.55 in) Mounting Hole Spacing (i) 183 mm (7.20 in) Mounting Hole Diameter (Ø) 6.50 mm (0.26 in)
Compatibility and References
- Engine Manufacturer: Selva
- Compatible Model: S601
- Application: Marine Engine Corrosion Protection
- Selva OEM Reference: 2504015
- Tecnoseal Part Number: 01909
Key Features
- Zinc sacrificial bar anode for Selva S601 marine engines.
- Helps protect compatible metallic engine components against galvanic corrosion.
- Elongated body with rounded ends and longitudinal grooves.
- Two mounting holes for attachment.
- Overall dimensions: 201 x 30 x 14 mm.
- Mounting hole centre spacing: 183 mm.
- Mounting hole diameter: 6.50 mm.
- Weight: 0.40 kg (0.88 lbs).
- Corresponds to Selva OEM part number 2504015.
-
