The Rule 24DA submersible bilge pump is a compact 12V DC unit for bilge water removal, rated up to 23 litres per minute (also listed as 1362 LPH / 360 US GPH). It supports heads up to 2.2 m, connects to a 19 mm (3/4 inch) hose, and uses a tough plastic body with a quick-release strainer, hidden air vents to help prevent air locking, and a check valve for backflow prevention. It is ignition protected and includes thermal cut-off protection; dimensions are 74 x 64 x 99 mm and weight is 0.41 kg (order number 00304471, barcode 042237104700).
- Description
- Ask a Question
-

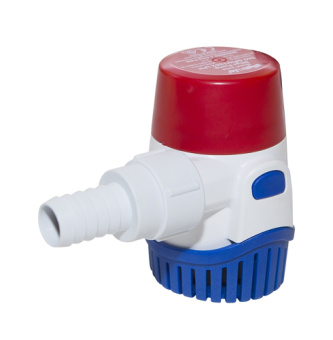

Rule 24DA Compact 12V DC Submersible Bilge Pump
The Rule 24DA is a compact submersible bilge pump designed for reliable water removal in marine bilge spaces and other tight installations. It uses a vented design to help prevent air locking, includes a quick-release strainer for easier cleaning, and provides built-in protection features for dependable operation.
Technical Specifications
Brand Rule Model 24DA Order Number 00304471 Supplier Code 24DA Barcode 042237104700 Voltage 12V DC Flow Rate (Stated) 1362 LPH (360 US GPH); also listed as 1579 L/h (417 GPH) Flow Rate at 1 m Head 1003 LPH Flow Rate at 2 m Head 719 LPH; also listed as 567 L/h (150 GPH) Output (Stated) Up to 23 litres per minute (5 gallons per minute) Maximum Head (Stated) 2.2 m; also listed as 2 m Current Draw (Stated) 2.1 A; also listed as max 2.4 A (13.6 V) Fuse (Stated) 3 A; also listed as 2.5 A and 4 A Hose Connection 19 mm (3/4 inch) Outlet 19 mm ID hose Discharge Connection (Stated) Threaded discharge; also listed as 19 mm (3/4 inch) NPSM Material Tough plastic body Ignition Protected Yes Thermal Cut-Off Protection Yes Backflow Prevention Check valve included Air Venting Hidden air vents to prevent air locking Strainer Integrated quick-release strainer Fits Fits existing Rule 24 screw holes Cable (Stated) 750 mm cable Dimensions 74 mm (L) x 64 mm (W) x 99 mm (H) Weight 0.41 kg (approx. 0.61 kg packed) Packaged Dimensions 18.00 x 9.00 x 17.00 cm Shipping Weight (Stated) 0.60 kg Product Portfolio Submersible bilge pumps Material Resistance (Stated) UV-resistant and corrosion-resistant
Features
- Compact submersible design for confined bilge spaces
- Quick-release strainer for easier cleaning
- Thermal cut-off protection
- Check valve included for backflow prevention
- Hidden air vents to help prevent air locking
- Threaded discharge for easier installation and maintenance
- Ignition protected for marine use
Compatibility
- Fits existing Rule 24 screw holes
- Alternate to Rule 24
- Designed for automatic operation when paired with Rule Float Switches
- Operated by a separate panel switch or float switch to sense water and activate the pump
Product Details
This pump is specified with a 19 mm (3/4 inch) discharge connection and is intended for efficient water removal in small vessels and similar marine applications where compact size and straightforward maintenance are important.
-
