ID
1259060
$ 109.38
1-2 weeks delivery time
-
+
The Rule 24DA-35A bilge pump and switch combo pairs the Rule 24DA 12V DC pump (1362 LPH / 360 US GPH) with a narrow float switch for automatic operation in confined bilge spaces. It includes thermal cut-off protection, a built-in check valve for backflow prevention, hidden air vents to reduce air-locking, and a threaded discharge for easier maintenance. Pump hose connection is 19 mm (3/4 inch), maximum head is 2.2 m, current draw is 2.1A at 12V (2.4A at 13.6V), and the recommended fuse is 2.5A.
- Description
- Ask a Question
-

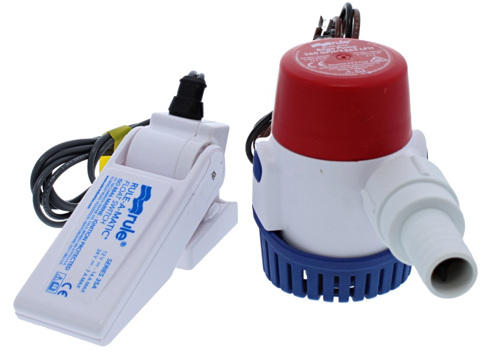

Rule 24DA-35A 12V Bilge Pump and Float Switch Set
The Rule 24DA-35A combines a Rule 24DA bilge pump with a narrow-design float switch to provide automatic bilge pumping in tight installation spaces. The assembly is designed for cleaner bilges with integrated backflow prevention and protection features, while keeping installation and maintenance straightforward.
Technical Specifications
Brand Rule Model 24DA-35A Voltage 12V DC Flow Rate 1362 LPH (360 US GPH) Flow Rate at 1 Metre Head 1003 LPH Flow Rate at 2 Metre Head 719 LPH Maximum Head 2.2 metres Current Draw 2.1A (at 12V), 2.4A (at 13.6V) Fuse 2.5A Hose Connection 19 mm (3/4 inch) Thermal Cut-Off Protection Yes Check Valve for Backflow Prevention Yes Ignition Protected Yes Pump Dimensions (L x W x H) 74 mm x 64 mm x 99 mm Float Switch Dimensions (L x W x H) 105 mm x 40 mm x 110 mm Switch Maximum Current 14A Warranty 3 years Order Number 00304472 Supplier Code 24DA-35A Barcode 042237106520
Features
- Narrow float switch design for automatic operation in confined bilge spaces
- Thermal cut-off protection
- Built-in check valve to help prevent backflow
- Hidden air vents to help prevent air-locking
- Threaded discharge for easier maintenance
-
