The Rule 25DA submersible bilge pump is a 12V DC unit for water removal in small boats and ski-boats, rated up to 1893 LPH (also stated as 31 L/min and 500 US GPH). It connects to a 19 mm (3/4 inch) hose and is specified with a 2 m maximum head, 1.6A current draw (also listed as 1.8A max at 13.6V), thermal cut-off protection, an included check valve, and a vented body to prevent air locking. Dimensions are 74 x 64 x 99 mm and weight is 0.41 kg; motor life is rated for 1500 hours, with fuse size listed as 2.5A and also 4A in the provided specifications.
- Description
- Ask a Question
-

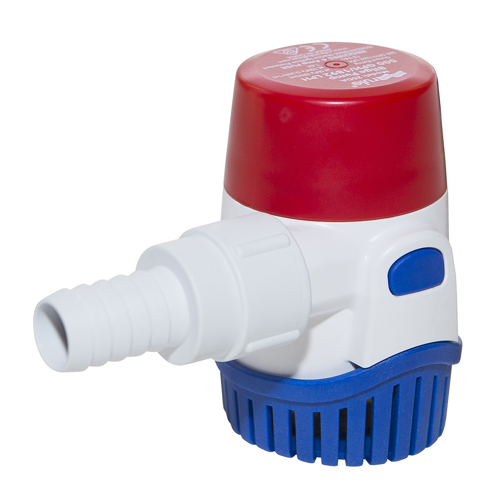

Rule 25DA 12V Submersible Bilge Pump for Small Boats
The Rule 25DA is a compact submersible bilge pump designed for removing water from bilge areas in small vessels such as ski-boats. It focuses on dependable operation with built-in thermal protection, backflow prevention via an included check valve, and a vented housing intended to reduce air-lock conditions.
Technical Specifications
Brand Rule Model 25DA Voltage 12V DC Flow Rate 1893 LPH (500 US GPH); also stated as 31 L/min (7 gallons/min) Capacity at Zero Discharge Head 2165 L/h (572 GPH) Capacity at 2 m Head 1022 L/h (270 GPH) Maximum Head 2 m Current Draw 1.6A; also listed as 1.8A max (13.6V) Fuse 2.5A; also listed as 4A Hose Connection 19 mm (3/4 inch) hose Discharge Connection 19 mm (3/4 inch) NPSM (threaded discharge); also stated as threaded port Thermal Cut-Off Protection Yes Check Valve Included Air-Lock Prevention Vented body Dimensions 74 mm (L) x 64 mm (W) x 99 mm (H) Weight 0.41 kg (shipping weight also listed as 0.60 kg) Motor Life Rating 1500 hours Order Number 00304473 Supplier Code 25DA Barcode 042237104717 Product Portfolio Submersible bilge pumps Manual Multilingual
Features
- Thermal cut-off protection to help prevent overheating
- Included check valve to help prevent backflow
- Vented body intended to prevent air locking
- Threaded discharge / threaded port for easier installation and maintenance
- Quick-release inlet strainer for easier cleaning (as listed)
Compatibility
- Compatible with Rule Float Switches for automatic operation
- Operated using a separate panel switch or float switch
- Listed as an alternate to Rule 25D
-
