ID
1259058
$ 85.38
1-2 weeks delivery time
-
+
The Rule 240-24V inline marine ventilation blower is a 24V DC continuous-duty unit for engine room or bilge airflow. It delivers 6.7 m³/min (235 CFM) and is designed for 100 mm (4 inch) hose connections / ducting, with a sealed, corrosion-resistant construction including a nickel-plated motor and sealed shaft. The blower can be mounted in any orientation and is listed with current draw values of 2.4A (also noted as approx. 4.3A), fuse values of 4A (also noted as 7.5A), dimensions of 130 x 150 x 120 mm (also noted as 13.7 x 15.2 x 12.1 cm), and weight of 0.58 kg (shipping weight 0.80 kg).
- Description
- Ask a Question
-

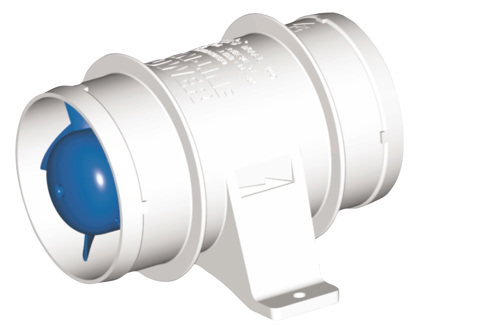

Rule 240-24V 24V Marine Inline Ventilation Blower
The Rule 240-24V is a compact in-line blower for marine ventilation in areas such as engine rooms and bilges. It is designed for continuous-duty operation and uses a sealed, corrosion-resistant build to help protect the motor and shaft from moisture while providing high-volume airflow.
Technical Specifications
Brand Rule Supplier Code 240-24V Model 240-24 Order Number 00320277 Barcode 042237085443 Voltage 24V DC Air Displacement 6.7 m³/min Output (Open Flow) 6.7 m³/min (235 CFM) Current Draw 2.4A (also noted as approx. 4.3A) Fuse 4A (also noted as 7.5A) Continuous Duty Rated Yes Hose Connection 100 mm (4 inch) Ducting Size 102 mm (4 inch) Mounting Can be installed in any position on flat surfaces Dimensions 130 mm (L) x 150 mm (W) x 120 mm (H) (also noted as 13.7 cm (L) x 15.2 cm (W) x 12.1 cm (H)) Weight 0.58 kg Shipping Weight 0.80 kg
Features
- Sealed, corrosion-resistant design for marine environments
- Nickel-plated motor and sealed shaft to help protect against moisture
- Front and rear shaft seals
- Quiet operation and low current usage
- Efficient, high-volume airflow for ventilation of bilges, engine compartments, galleys, and heads
- USCG 183.410 compliant and ignition protected (as stated)
Product Details
Designed for installation with 100 mm (4 inch) duct connections, this blower can be mounted in any orientation and is specified for continuous-duty use where reliable ventilation is required.
-
