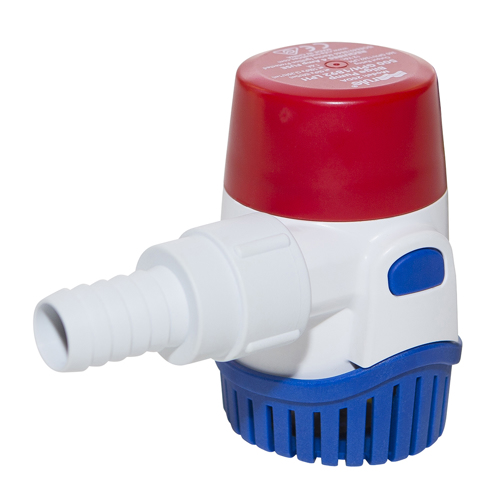

The Rule 25DA-24 is a compact, non-automatic submersible bilge pump for 24V DC marine systems with an open-flow capacity of 1892 LPH (500 US GPH). It uses a 19mm (3/4 inch) outlet for ID hose and a threaded discharge, with a maximum head up to 2.2 m (recommended max 2 m). The pump features a tough plastic body, optimized impeller, hidden air vents to reduce air-locking, a built-in thermal cut-off, and an integrated check valve to help prevent backflow; it is ignition protected and listed with ISO8846, ISO8849, and CE approvals.
- Description
- Ask a Question
-
Rule 25DA-24 Rule 500 Submersible Bilge Pump (24V DC)
The Rule 25DA-24 is a compact, non-automatic submersible bilge pump designed for efficient water removal in marine environments. Built with a tough plastic body for durability, it is intended for simple installation and maintenance and includes protective and anti-backflow features for dependable operation.
Technical Specifications
Brand Rule Supplier Code 25DA-24 Order Number 00304474 Barcode 042237104748 Series Rule 500 Model 25DA Category Bilge pump Product Portfolio Submersible bilge pumps Automatic No Voltage 24V DC Flow Rate (Open Flow) 1892 LPH (500 US GPH) Flow Rate at 1 m Head 1362 LPH (360 US GPH) Flow Rate at 2 m Head 984 LPH (260 US GPH) Max Pump Head 0 to 2.2 m (recommended max: 2 m / 6.5 ft) Current Draw 0.8 A at 24V; 0.9 A at 27.2V Fuse 1.5 A Power Consumption 0.8 Ah Hose Size 19 mm / 3/4 inch Outlet 19 mm (3/4 inch) ID hose Connection 19 mm (3/4 inch) ID hose or 19 mm (3/4 inch) NPSM Primary Construction Tough plastic body Dimensions Height 99 mm (3.9 inch), Width 64 mm (2.5 inch), Length 74 mm (2.9 inch) Dimensions (Alternate Listing) Height 10.0 cm, Width 7.4 cm, Depth 6.4 cm (without discharge) Weight 0.41 kg (approx. 0.61 kg packed) Shipping Weight 0.60 kg Packaged Dimensions L 18.00 cm x H 9.00 cm x W 17.00 cm Approvals ISO8846 marine (ignition), ISO8849 marine (bilge pump), CE Certification Ignition Protected Yes Warranty 3 years Motor Life Motor rated for a long service life of 1500 hours Helix 3/4 inch
Features
- Non-automatic submersible bilge pump for 24V DC systems
- Higher flow via optimized impeller
- Built-in thermal cut-off (TCO) for added protection
- Check valve to help prevent backflow
- Hidden air vents to reduce air-locking
- Threaded discharge for simplified installation and maintenance
- Integral strainer with quick-release inlet strainer for easier cleaning
Compatibility
- Base compatible with Rule 26D screw holes
- Replaces Rule 26D (504154)
- Compatible with Rule Float Switches for automatic operation
Product Details
The pump can be operated using a separate panel switch or a float switch to sense water and activate the pump.
-
