ID
1353917
$ 2,448.07
1-2 weeks delivery time
-
+
The MARCO UP6/E-DX gear pump is a 12/24V DC self-priming pump rated for 52 liters per minute (free discharge/without back pressure) with a cut-off pressure of 2.5 bar. It features 3/4 inch connections (including 3/4 inch BSPP; 3/4 inch / 19 mm noted), current consumption of 32/16A, and self-priming up to 1.5 m. The unit includes a dual pump assembly with an electronic control panel, non-return valve, and electronic pressure sensor, and uses a nickel-plated brass housing/connections, stainless steel spindle, PEEK helical gears, FKM seals, and an NBR O-ring. Dimensions are 300 x 230 x 285 mm, with a shipping weight of 13.30 kg.
- Description
- Ask a Question
-

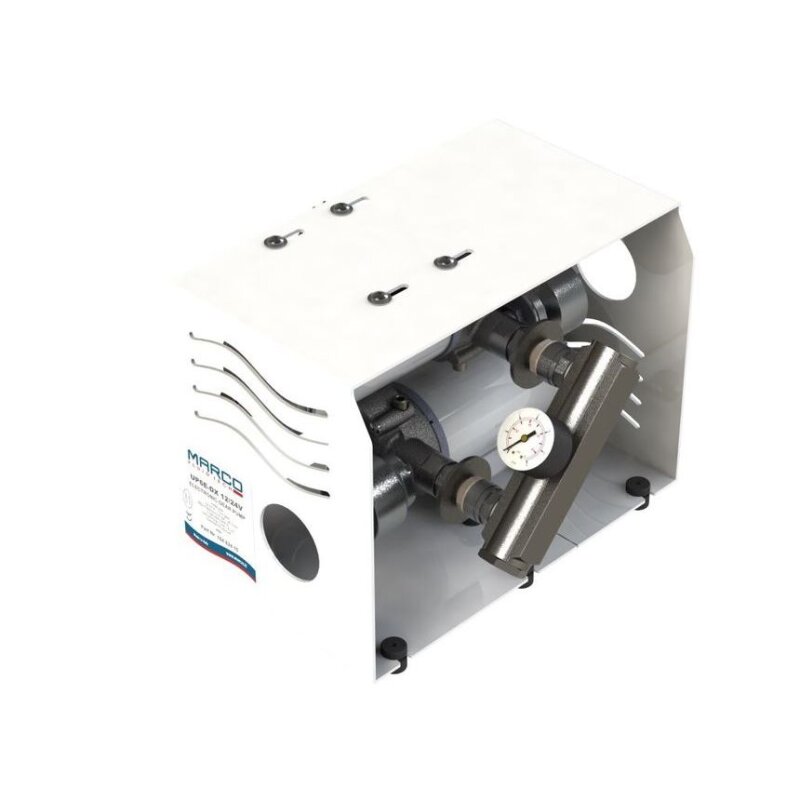

UP6/E-DX Electronic-Control Gear Pump
The MARCO 16462415 is a 12/24V DC gear pump designed for water pressure system applications. It is a self-priming, helical-gear electric pump with an electronic control panel, non-return valve, and electronic pressure sensing for controlled operation.
Technical Specifications
Flow Rate (Free Discharge) 52 L/min (without back pressure) Cut-Off Pressure 2.5 bar Voltage 12 / 24V DC (Voltage listed: 12V) Current Consumption 32 / 16A Self-Priming Up to 1.5 m Connection 3/4 inch (19 mm); 3/4 inch BSPP Dimensions (H x W x L) 300 x 230 x 285 mm Housing and Connections Material Nickel-plated brass Spindle Material Stainless steel Gear Type PEEK helical gears Seal Material FKM O-Ring Material NBR Configuration Dual pump unit Control Electronic control panel included Valves and Sensors Non-return valve; electronic pressure sensor Product Portfolio Water Pressure Systems Shipping Weight 13.30 kg
Features
- 52 L/min flow rate at free discharge (without back pressure)
- Self-priming up to 1.5 m
- 3/4 inch connections (including 3/4 inch BSPP)
- Dual pump unit with electronic control panel included
- Non-return valve and electronic pressure sensor
- Nickel-plated brass housing/connections, stainless steel spindle, PEEK helical gears, FKM seals, and NBR O-ring
Product Details
If there is any uncertainty regarding material compatibility between the pump and the liquid being pumped, verify compatibility before putting the pump into operation.
-
