ID
1172826
$ 704.42
1-2 weeks delivery time
-
+
The Marco UP6/E self-priming automatic gear pump uses an electronic pressure system for marine fresh water pressure systems and shower kits on yachts and sailing boats. It runs on 12/24V universal voltage with a max flow rate of 26 L/min and pressure of 2.5 bar, drawing 10/5 A. Construction details include a nickel-plated brass body (housing and connections), helical PEEK gears, check valve, stainless steel shaft/spindle, FKM seals, and an NBR O-ring; listed connections include 1/2 inch (12.7 mm) / 1/2 inch BSPP and an outlet size of 3/8 x 16 mm.
- Description
- Ask a Question
-

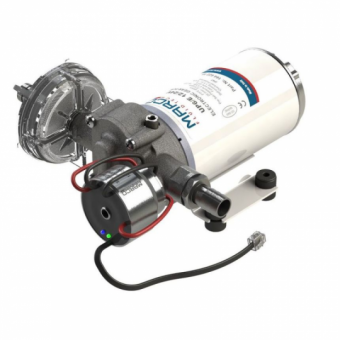

Marco UP6/E Self-Priming Automatic Gear Pump
The Marco UP6/E is a self-priming automatic pump for marine water pressure duties. It is designed for fresh water pressure systems and shower kits, using an electronic pressure system and a robust metal body to support reliable onboard operation.
Technical Specifications

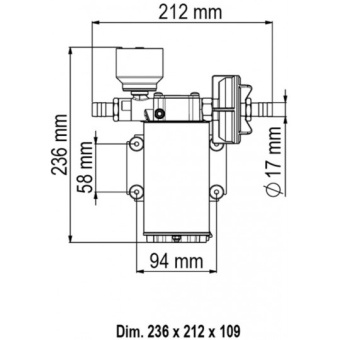

Brand Marco Part Number 16462215 FNI Product Number 1600011 EAN 8022278607455 Type Self-priming automatic pump Pump Type Gear pump Voltage 12/24V universal voltage Voltage (Listed in Table) 12V Max Flow Rate 26 L/min Flow Rate Note Free discharge (without back pressure) Pressure 2.5 bar Current Draw 10 / 5 A Self-Priming Up to 1.5 m Check Valve Yes Electronic Pressure System Yes Gears Helical PEEK gears Body / Housing Nickel-plated brass Connections (Material) Nickel-plated brass Shaft / Spindle Stainless steel Seals FKM O-Ring NBR Material (Listed) HNBR Outlet Size 3/8 x 16 mm Connection (Listed) 1/2 inch (12.7 mm) Connection (Table) 1/2 inch BSPP Dimensions (H x W x L) 231 x 111 x 221 mm Shipping Weight 4.80 kg Product Portfolio Water Pressure Systems
Features
- Electronic pressure system with electronic pressure sensor
- Self-priming operation
- Helical PEEK gears
- Check valve (non-return valve)
- Nickel-plated brass housing and connections with stainless steel shaft/spindle
Applications
- Fresh water pressure systems
- Shower kits on yachts
- Rubber dinghies
- Sailing boats
Product Details
- Also listed as available with an electronic control panel.
- Italian Nautical Supplies reference: 1600011
- If there are uncertainties regarding material compatibility with the pumped medium, compatibility of pump materials in contact with the liquid should be clarified before operation.
-
