The GMP B2KQA Right-Hand Rotation Self-Priming Centrifugal Pump is a compact, orange-colored pump used for bilge and deck washing, sprinkling, dewatering, and industrial, construction, and agricultural tasks. It has a cast iron open impeller and housing, stainless steel shaft, and ceramic on carbon mechanical seal, handling contaminated water and sea water. It delivers up to 22,500 litres per hour at 10 metres head, with 2" internal thread connections, weighs 14.1 kg, and operates at 2800 to 3600 rpm with 1.9 kW power.
- Description
- Ask a Question
-

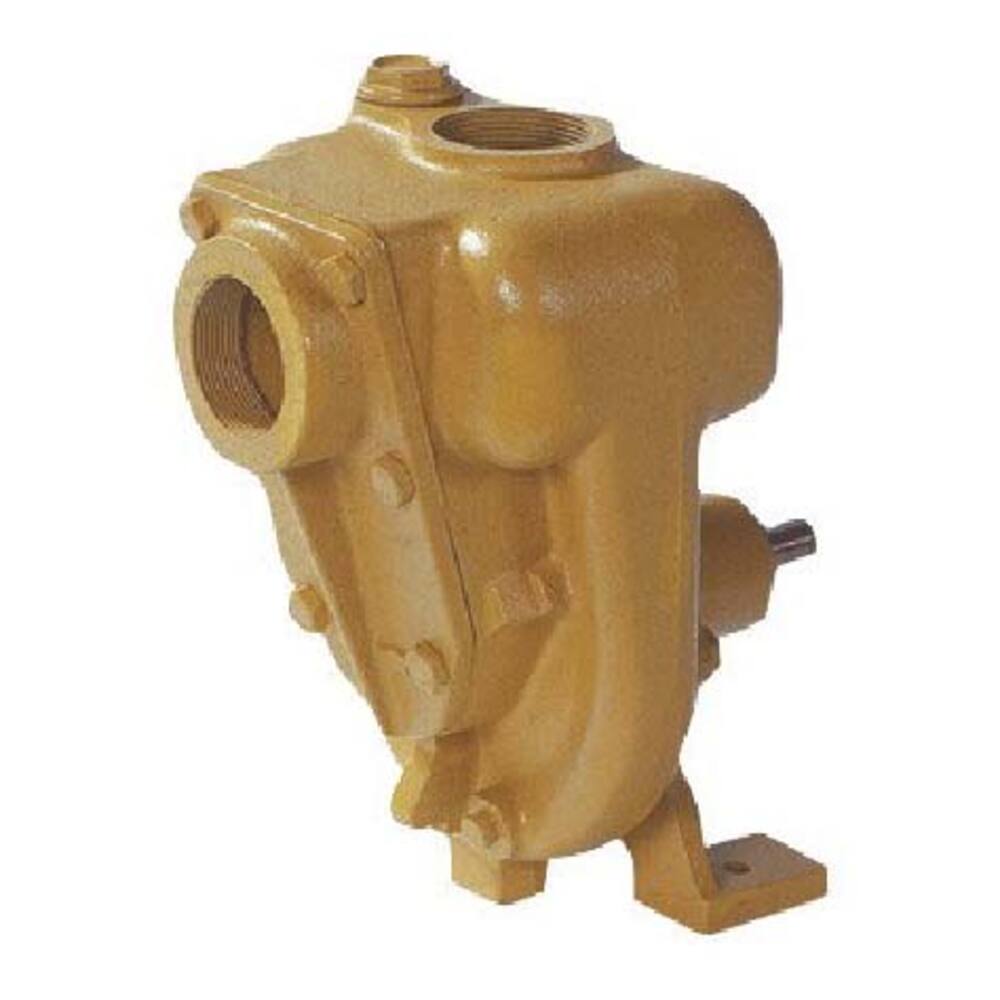

GMP B2KQA Right-Hand Rotation Self-Priming Centrifugal Pump
This self-priming centrifugal pump is widely applied in shipping for bilge and deck washing, sprinkling, dewatering, and is also suitable for industrial, construction, and agricultural uses.
- Type: B
- Colour: orange
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: contaminated water, sea water, etc.
- Performance:
- 10 metres head: 22,500 litres/hour
- 15 metres head: 13,500 litres/hour
- Connections: 2" internal thread
- Dimensions (LxWxH): 275 x 187 x 298 mm
- Weight: 14.1 kg
- Shaft diameter: 15.87 mm
- Shaft power: 1.9 kW, 2.5 hp at 3000 rpm
- Speed range: 2800 through 3600 rpm
- Product code: 95.37.020
- Suction head: 7.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 10 mm
- Discharge head max.: 17.0 m
- Free flow: 25,500 L/hour
- Capacity at 5 meters: 25,000 L/hour
-
