ID
1316914
$ 3,475.83
1-2 weeks delivery time
-
+
The Faeces Pump B50 + Chopper 400V is a robust self-priming centrifugal pump with an integrated chopper, designed for domestic water and faeces with large solids (excluding stone or metal). It operates at 400V with cast iron parts and a short circuit motor, handling particles up to 25 mm and pumping up to 35,500 liters per hour at 5 meters head.
- Description
- Ask a Question
-

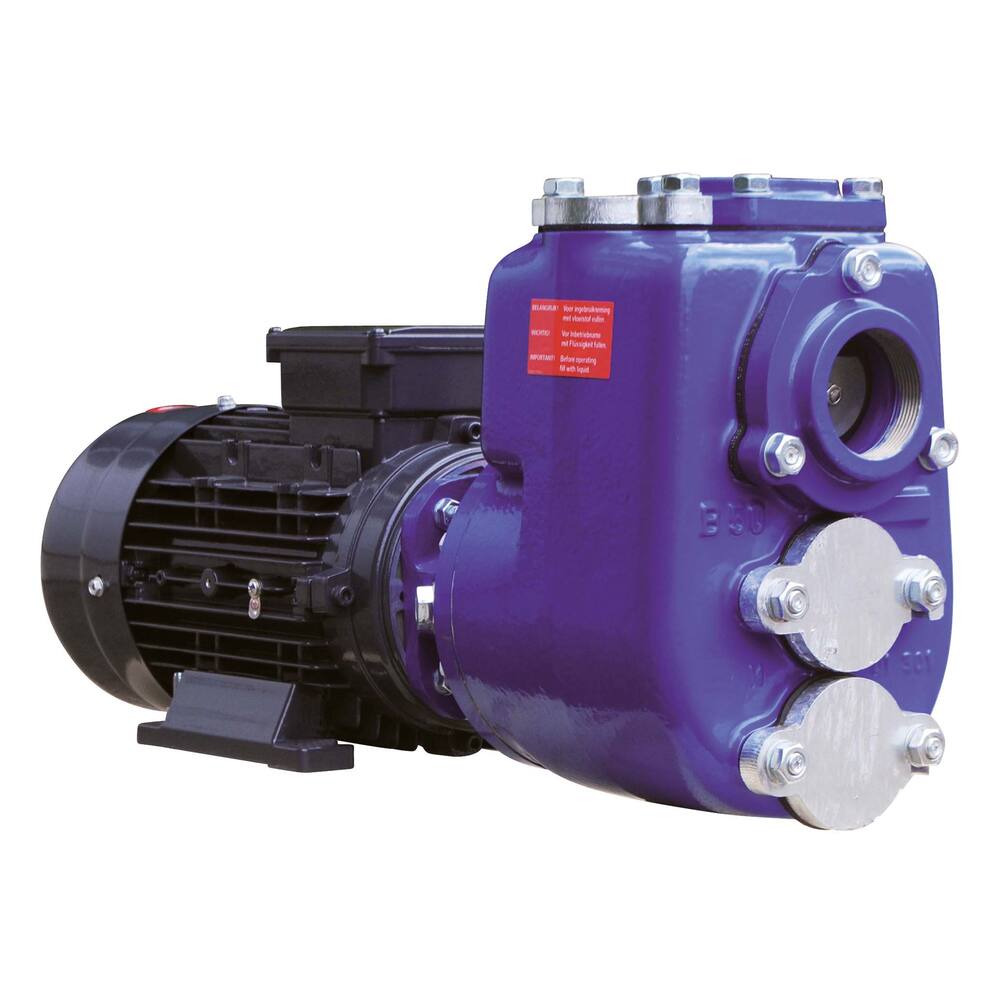

Faeces Pump B50 + Chopper 400V
The Faeces Pump B50 with its integrated chopper is a self-priming centrifugal pump designed to handle all domestic water and faeces. Its capability to be positioned above the liquid level makes it versatile for various installations, supporting environmental safety with a robust design.
- Type: B
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: half open impeller with knife
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Shaft seal: carbon on ceramic mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: heavily contaminated water (sewage) with large solid pieces (not stone or metal)
- Flow rate at 10 m head: 30,500 litres per hour
- Flow rate at 15 m head: 16,000 litres per hour
- Connections: 2" internal thread
- Dimensions (L×W×H): 555 × 235 × 324 mm
- Weight: 44 kg
- Amperage: approx. 5.5 A
- Shaft power: 2.2 kW, 3.0 hp, 2850 rpm
- Product code: 92.96.050
- Suction head: 5.0 m
- Pipe diameter pressure: 2"
- Pipe diameter suction: 2"
- Pump type: Dry set-up pump: self-priming
- Medium: Water; Water with coarse components
- Particle size: 25 mm
- Max discharge head: 18.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 35,500 L/hour
- Capacity at 5 meters: 35,500 L/hour
-
