The Faeces Pump B40 + Chopper 400V is a 400V version of the B40 pump, also self-priming with a built-in chopper for heavily contaminated water with large solids (excluding stone or metal). It features cast iron construction, a short circuit motor, and delivers the same flow rate as the 230V model, up to 21,500 liters per hour at 5 meters head.
- Description
- Ask a Question
-

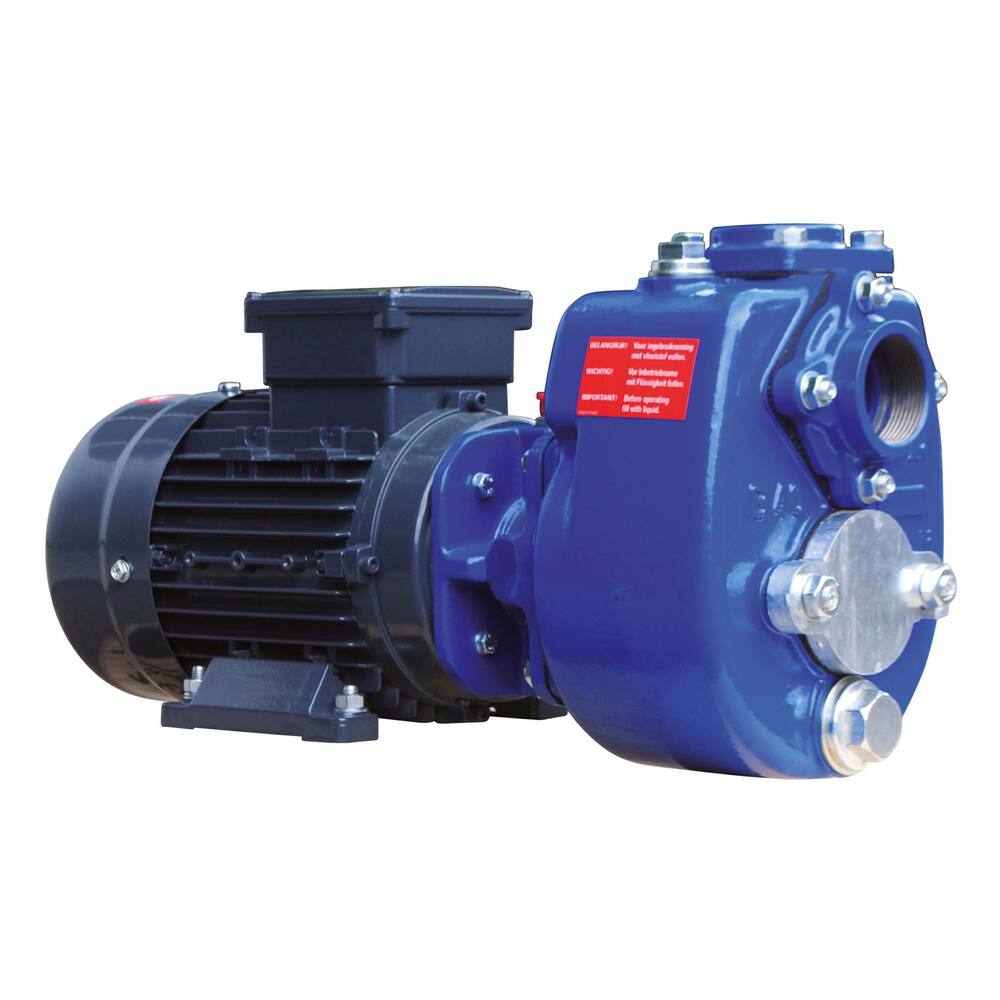

Faeces Pump B40 + Chopper 400V
This version of the Faeces Pump B40 with chopper operates at 400V and is also self-priming, suitable for transporting domestic water and faeces with large solid pieces (excluding stone or metal). Like the 230V model, it can be positioned above liquid level and meets future environmental standards.
- Type: B
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: half open impeller with knife
- Motor type: short circuit motor
- Fuse: not built-in
- Shaft seal: carbon on ceramic mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: heavily contaminated water (sewage) with large solid pieces (not stone or metal)
- Performance:
- 10 metres head: 15,000 litres per hour
- 15 metres head: 5,000 litres per hour
- Connections: 1.1/2" internal thread
- Dimensions (L×W×H): 438 x 215 x 240 mm
- Weight: 26 kg
- Amperage: 400 V, approx. 2.4 A
- Shaft power: 1.1 kW, 1.5 hp, 2850 rpm
- Product code: 92.96.045
- Suction head: 5.0 m
- Pipe diameter pressure and suction: 1.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water including water with coarse components
- Maximum particle size: 18 mm
- Max discharge head: 15.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: Not included
- Free flow rate: 21,500 L/hour
- Capacity at 5 meter head: 21,500 L/hour
-
