ID
1316912
$ 3,676.99
1-2 weeks delivery time
-
+
The Faeces Pump B40 + Chopper 230V is a self-priming centrifugal pump with a built-in chopper, suitable for transporting domestic water and faeces containing large solid pieces (excluding stone or metal). It operates at 230V with a short circuit motor, cast iron components, and can pump up to 21,500 liters per hour at 5 meters head, handling particles up to 18 mm.
- Description
- Ask a Question
-

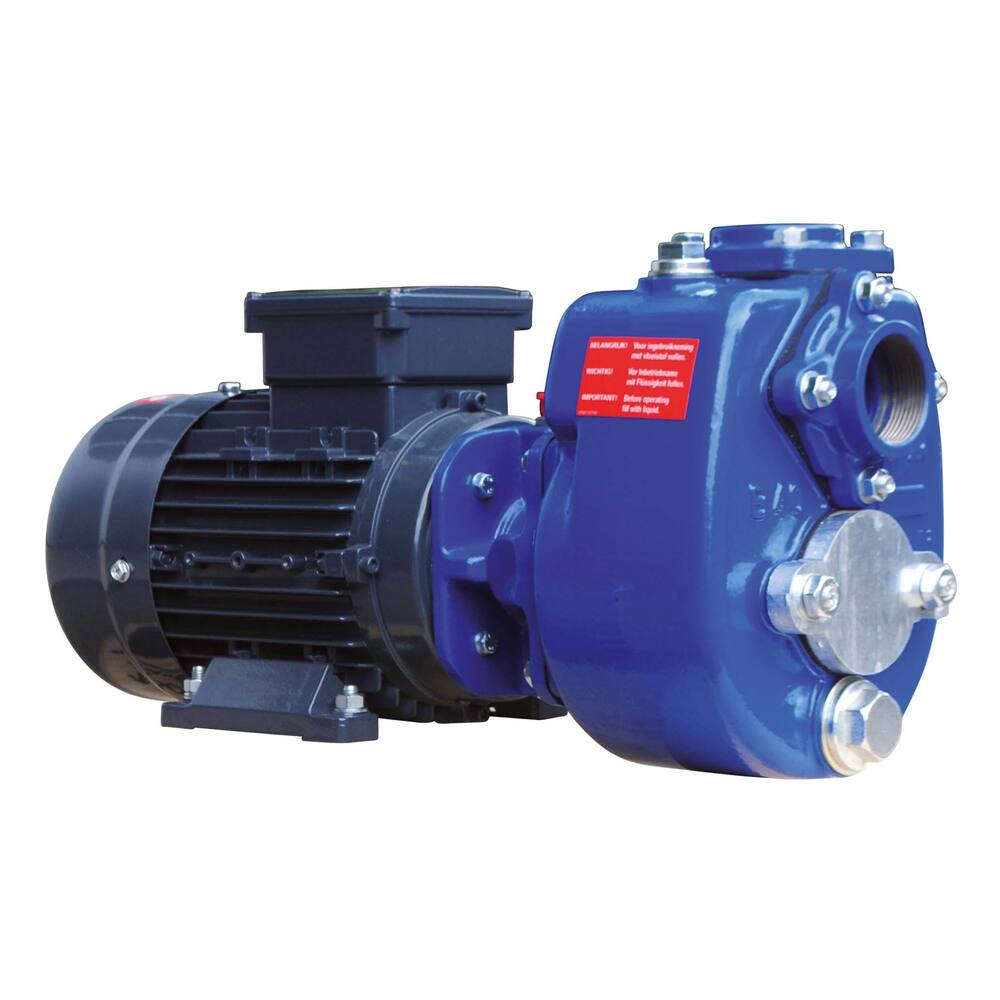

Faeces Pump B40 + Chopper 230V
This self-priming pump is designed for transporting all domestic water and faeces and can be installed above the liquid level. It includes a built-in chopper, making it suitable for handling heavily contaminated water with large solid pieces (excluding stone or metal). It supports stricter environmental standards and is promoted as a pump made for the future.
- Type: B
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: half open impeller with knife
- Motor type: short circuit motor
- Fuse: not built-in
- Shaft seal: carbon on ceramic mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: heavily contaminated water (sewage) with large solid pieces (not stone or metal)
- Performance:
- 10 metres head: 15,000 litres per hour
- 15 metres head: 5,000 litres per hour
- Connections: 1.1/2" internal thread
- Dimensions (L×W×H): 438 x 215 x 240 mm
- Weight: 26 kg
- Amperage: 230 V, approx. 9.2 A
- Shaft power: 1.1 kW, 1.5 hp, 2850 rpm
- Product code: 92.96.040
- Suction head: 5.0 m
- Pipe diameter pressure and suction: 1.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water including water with coarse components
- Maximum particle size: 18 mm
- Max discharge head: 15.0 m
- Voltage: 230 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: Not included
- Free flow rate: 21,500 L/hour
- Capacity at 5 meter head: 21,500 L/hour
-
