ID
1316916
$ 3,054.85
1-2 weeks delivery time
-
+
The Speck Pump PY-2071.784 24DC 24V is a self-priming pump designed for shipping, industry, and agriculture, suitable for cooling, humidification, drinking water, laundry, and cleaning. It offers high pressure with low energy consumption and noise, can run continuously, and is compatible with gas oil due to oil-resistant seals. It delivers up to 900 liters per hour at 24 V with a maximum discharge head of 36 meters.
- Description
- Ask a Question
-

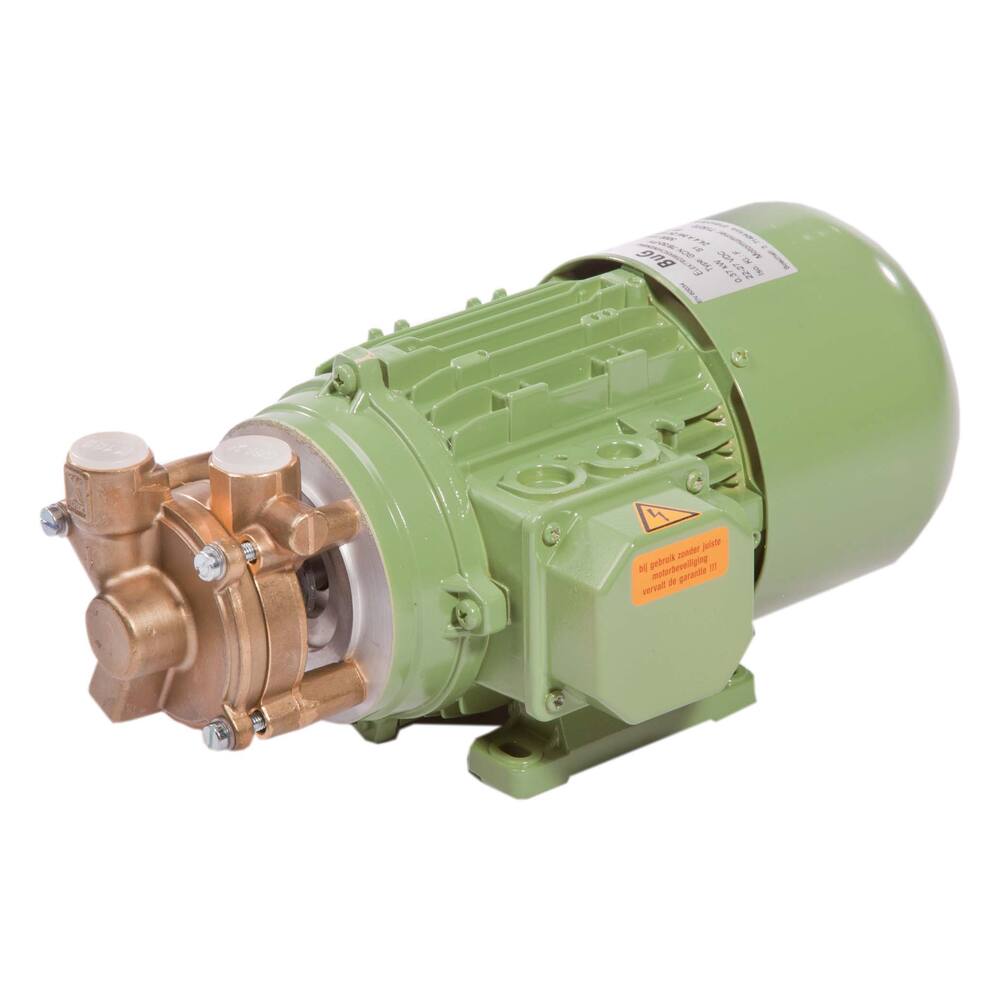

Speck Pump PY-2071.784 -24DC 24V
Designed for shipping, industry, and agriculture, this self-priming pump excels in cooling, humidification, drinking water, laundry, and cleaning applications. It offers high pressure with low energy consumption and noise, and is capable of continuous operation. The pump is also suitable for gas oil usage at 24 V thanks to oil-resistant seals.
- Type: PY
- Colour: olive green with brass components
- Pump type: self-priming pump with open peripheral impeller
- Motor: brush motor for 24 V
- Shaft seal: ceramic on carbon mechanical seal with NBR
- Materials: impeller and housing brass*, shaft stainless steel 1.4122*
- Liquids: low viscosity and clean liquids; water max 140 °C, oil max 160 °C
- Voltages: 24 V DC (other voltages possible)
- Performance at various heads:
- 10 m head: 750 L/hour
- 15 m head: 650 L/hour
- 20 m head: 480 L/hour
- 25 m head: 360 L/hour
- 30 m head: 180 L/hour
- 35 m head: 60 L/hour
- Connections: 1/2" internal thread
- Dimensions (LxWxH): 340 x 145 x 180 mm
- Weight: 8.4 kg
- Amperage: 24.4 A
- Shaft power: 0.37 kW (0.5 hp) at 3000 rpm
- Product code: 93.29.510
- Suction head: 8.0 m
- Pipe diameters: 1/2" pressure and suction
- Discharge head max: 36.0 m
- Voltage: 24 V DC | Protection class: IP68
- Particle size: up to 2 mm
- Free flow: 900 L/hour | Capacity at 5 meters: 900 L/hour
- *Various materials available
-
