ID
1316915
$ 5,370.20
1-2 weeks delivery time
-
+
The Faeces Pump B70 + Chopper 400V is a powerful self-priming centrifugal pump with a chopper, engineered for domestic water and faeces containing large solids (excluding stone or metal). It runs on 400V, has cast iron construction, and can handle particles up to 32 mm, delivering a free flow rate of 82,000 liters per hour at 5 meters head.
- Description
- Ask a Question
-

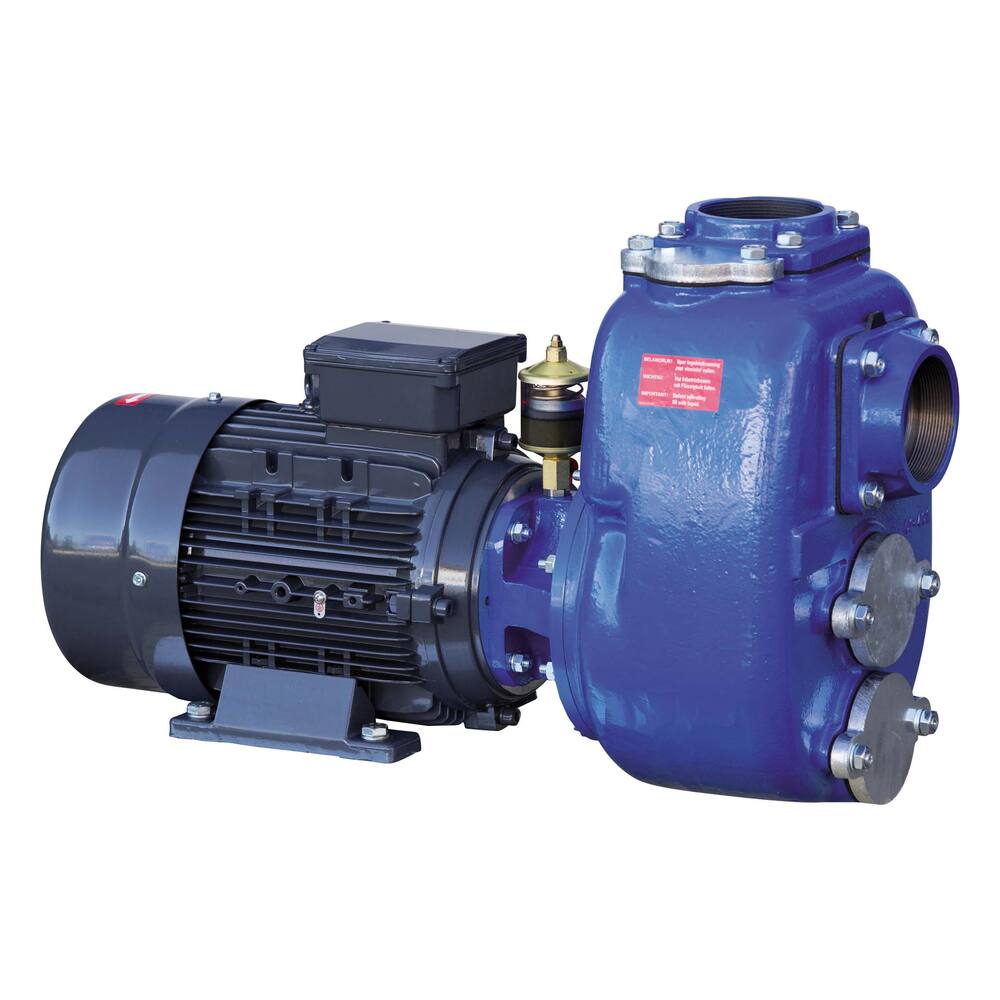

Faeces Pump B70 + Chopper 400V
The Faeces Pump B70 enhances the self-priming centrifugal pump design for transporting domestic water and faeces, featuring a chopper and suitable for above liquid level placement. It is engineered with environmental considerations for future demands.
- Type: B
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: half open impeller with knife
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Shaft seal: carbon on ceramic mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: heavily contaminated water (sewage) with large solid pieces (not stone or metal)
- Flow rate at 10 m head: 76,000 litres per hour
- Flow rate at 15 m head: 54,000 litres per hour
- Connections: 3" internal thread
- Dimensions (L×W×H): 636 × 400 × 432 mm
- Weight: 60 kg
- Amperage: approx. 10.0 A
- Shaft power: 4.0 kW, 5.5 hp, 2850 rpm
- Product code: 92.96.070
- Suction head: 5.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Pump type: Dry set-up pump: self-priming
- Medium: Water; Water with coarse components
- Particle size: 32 mm
- Max discharge head: 20.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 82,000 L/hour
- Capacity at 5 meters: 82,000 L/hour
-
