ID
1331030
$ 110.21
1-2 weeks delivery time
-
+
The Johnson Pump AirV 3-280 radial blower (80-47416-01) delivers efficient pre-start engine compartment ventilation with a flange-mounted design for easy horizontal or vertical wall installation. Its 12V electric motor (3.9 A) provides a 280 m³/h airflow capacity to help expel residual gases from petrol or diesel inboard engines, while the anti-shock ABS housing and double ball bearing motor support durable, heavy-duty marine use in bilges, galleys, cabins, and other onboard spaces.
- Description
- Ask a Question
-

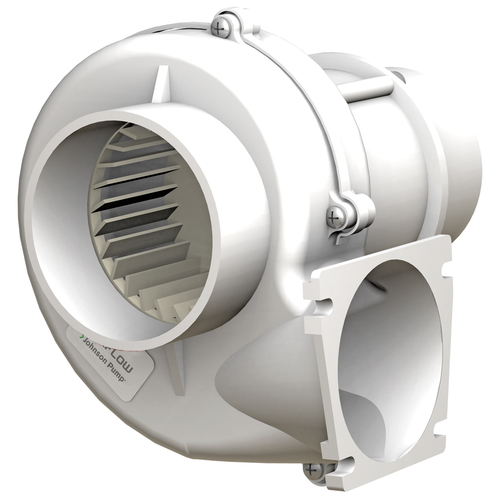

Johnson Pump AirV 3-280 Flange-Mounted Radial Blower (80-47416-01)
The Johnson Pump AirV 3-280 is a marine radial blower built to ventilate engine rooms before starting, helping improve onboard safety by clearing residual gases. With a compact blower body and flange mount, it supports straightforward wall installation in either horizontal or vertical orientation for ventilation of bilges, galleys, cabins, accommodations, and similar compartments.
Application
- Engine compartment ventilation before starting
- Air intake or extraction for bilges, galleys, cabins, accommodations, and other onboard spaces
- Helps expel residual gases from petrol or diesel inboard engines
Technical Specifications
Brand Johnson Pump Model AirV 3-280, flange mount Part Number 80-47416-01 Article Number 66804741601 EAN 8719182080329 Power Supply 12V / 24V (model-dependent) Current Draw (12V) 3.9 A Current Draw (24V) 2.5 A Capacity 280 m³/h Mounting Flange Dimensions (H x W x L) 198 x 171 x 195 mm Dimensions (H x W x L) 200 x 165 x 195 mm Duct Inlet (Suction) Ø 75 mm Outlet (Discharge) 92 x 80 mm Outlet Inner Diameter Ø 72 mm Shipping Weight 0.40 kg
Product Details
- Housing: Anti-shock ABS housing (AirV 3)
- Motor: Double ball bearing motor
- Hardware: Stainless steel shaft and bolts
- Installation: Wall installation via flange mount; can be mounted horizontally or vertically
- Documentation: Multilingual assembly instruction included in the box
Features
- Heavy-duty marine radial blower designed for engine room ventilation before start-up
- 280 m³/h airflow capacity supports fast ventilation of smaller onboard spaces
- Helps improve safety by expelling residual gases from petrol or diesel inboard engines
- Complies with CE standards, ISO 9097, ISO 8846, and ISO 10133
-
