The Johnson Pump 80-47418-02 radial ventilation blower (AirV 4-750) delivers strong airflow for marine spaces with a 750 m³/h capacity, supporting engine compartment ventilation before start-up as well as air intake or extraction. Its 24V (11A) power supply, flange-mount design, and ignition-protected construction help support safe operation, while listed conformity to ISO9097, ISO8846, ISO10133, and EN55017, plus compliance with N.M.M.A. and USCG 183.413, makes it a solid choice for demanding onboard installations.
- Description
- Ask a Question
-

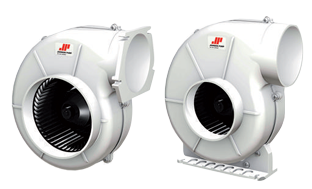

Johnson Pump 80-47418-02 AirV 4-750 Radial Ventilation Unit
The Johnson Pump AirV 4-750 is an extra heavy-duty radial blower built for marine ventilation. It is engineered for ventilating engine compartments before starting and can also be used for air intake or extraction in enclosed onboard spaces.
Application
- Engine compartment ventilation before start-up
- Air intake or extraction
- Bilges
- Galleys
- Accommodation spaces
- Compartments
- Cabins
Technical Specifications
Brand Johnson Pump Part Number 80-47418-02 Article Number 66804741802 EAN 8719182080329 Model AirV 4-750, Flange Mount Capacity 750 m³/h Power Supply 24 V (11 A) Current 11.0 A Dimensions 290 x 257 x 150 mm (H / W / L) Inlet Diameter 150 mm Outlet Diameter (Inner Diameter) 103 mm Flange Dimension 146 x 118 mm Ignition Protected Yes Standards Conformity ISO9097, ISO8846, ISO10133, EN55017 Compliance N.M.M.A., USCG 183.413 Shipping Weight 0.40 kg
Product Details
- Mounting style: Flange and hose mounted design
- Motor: Double ball bearing motor
- Housing: Nylon, fiberglass reinforced housing on AirV 4
- Hardware: Stainless steel shaft and bolts
Features
- Extra heavy-duty radial blower design for marine ventilation
- 750 m³/h airflow capacity to support effective air exchange
- Ignition-protected construction to support safer engine-room operation
- Designed for ventilating or de-ventilating bilges, compartments, cabins, and other onboard spaces
-
