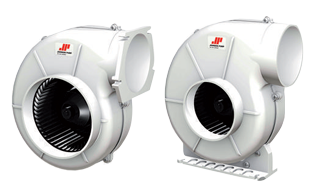

Johnson Pump 80-47417-01 - Radial Blower for Engine Room Ventilation

ID 1264865

$ 237.96

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump 80-47417-01 radial blower unit (AirV 4-550) delivers pre-start ventilation for engine compartments and other onboard spaces, supporting both air intake and extraction. Its 12V supply at 11.5A and 550 m³/h capacity provide strong airflow, while the flange-mount design supports secure installation. Ignition-protected construction and compliance with ISO9097, ISO8846, ISO10133, EN55014, plus N.M.M.A. and USCG 183.410 requirements, help meet marine safety expectations.

Description
Ask a Question

Johnson Pump AirV 4-550 Engine Compartment Radial Blower

The Johnson Pump 80-47417-01 is an extra heavy-duty radial blower built to ventilate marine engine rooms before engine start. It is suited to ventilating or de-ventilating enclosed onboard areas and supports use as an air intake or extraction blower.

Application

Engine compartments (pre-start ventilation)
Bilges
Galleys
Accommodation spaces
Compartments
Cabins

Technical Specifications

Brand	Johnson Pump
Part Number	80-47417-01
Article Number	66804741701
Model	AirV 4-550, Flange Mount
Rated Voltage	12 V
Current Draw	11.5 A
Capacity	550 m³/h
Dimensions	290 x 257 x 150 mm
Inlet Diameter	110 mm
Inlet	150 mm
Outlet Diameter	103 mm
Flange Dimension	146 x 118 mm
EAN	8719182080329
Shipping Weight	0.40 kg

Product Details

Mounting: Flange and hose mounted design
Motor: Double ball bearing motor
Housing: Nylon, fiberglass reinforced housing on AirV 4
Hardware: Stainless steel shaft and bolts
Safety: Ignition protected

Features

Extra heavy-duty radial blower for engine room ventilation before starting
Supports ventilating or de-ventilating bilges, compartments, cabins, and other spaces
Flange-mount format for secure installation

Standards and Regulations

Complies with ISO9097
Complies with ISO8846
Complies with ISO10133
Complies with EN55014
Meets N.M.M.A. requirements
Meets USCG 183.410 regulations
