ID
1331032
$ 323.51
1-2 weeks delivery time
-
+
The Johnson Pump AirV 4-750 radial blower is an extra heavy-duty 12V ventilation unit built for engine rooms, bilges, galleys, cabins, and other onboard spaces, delivering 750 m³/h airflow for effective intake or extraction. Its flange and hose mounting design supports straightforward installation, while the double ball bearing motor draws 19 A for strong performance. Ignition protection adds safety, and the reinforced nylon housing plus stainless steel shaft and fasteners are engineered for long-lasting service in demanding marine environments.
- Description
- Ask a Question
-

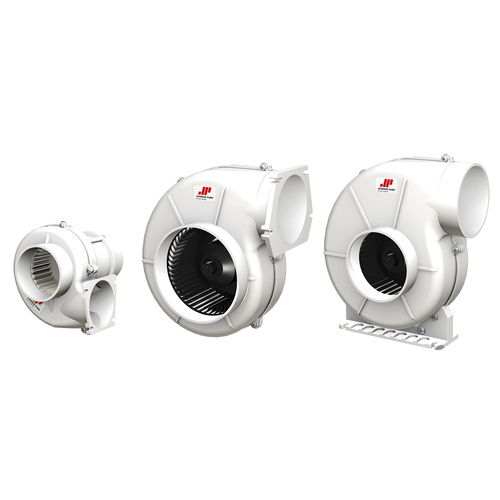

Johnson Pump 80-47418-01 AirV 4-750 12V Flange-Mount Radial Blower
The Johnson Pump AirV 4-750 is an extra heavy-duty marine radial blower designed to ventilate engine compartments before startup and to support air intake or extraction in a wide range of onboard areas. With a flange and hose mounting arrangement and a robust motor design, it delivers dependable airflow where efficient ventilation and safety are essential.
Application
- Engine compartments (ventilation before startup)
- Bilges
- Galleys
- Cabins and accommodation areas
Technical Specifications
Brand Johnson Pump Part Number 80-47418-01 Article Number 66804741801 Model AirV 4-750, flange mount Power Supply 12 V (19 A) Capacity 750 m³/h Dimensions (H / W / L) 290 x 257 x 150 mm Inlet Diameter 150 mm Outlet Diameter (Inner) 103 mm Flange Dimension 146 x 118 mm Ignition Protected Yes EAN 8719182080329 Shipping Weight 0.40 kg
Product Details
- Motor: Double ball bearing motor
- Housing (AirV 4): Nylon with glass fiber reinforcement
- Shaft and Fasteners: Stainless steel shaft and screws/bolts
- Mounting: Flange and hose mounted design
- Standards: ISO9097, ISO8846, ISO10133, EN55016
- Compliance: N.M.M.A., USCG 183.412
Features
- Extra heavy-duty marine radial blower for ventilation and extraction
- Ignition protection for added safety and reliability
- Compact form factor to support flexible installation
- Durable construction designed for demanding marine environments
-
